Mesh Visualizer

The CENTAUR Mesh Visualizer allows the user to view grids (surface, prism / hex or entire hybrid grids) alongside the geometry in the same work environment used for setup and CAD import / cleaning.

Capabilities:

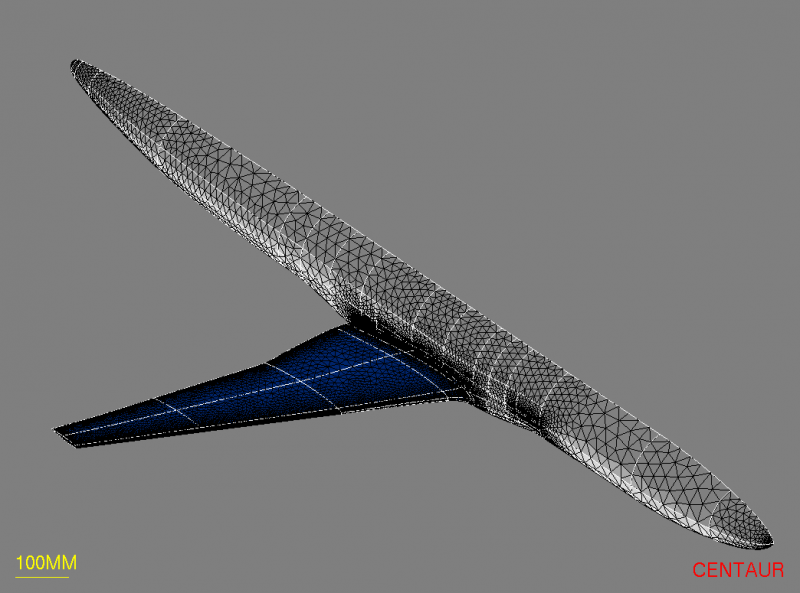

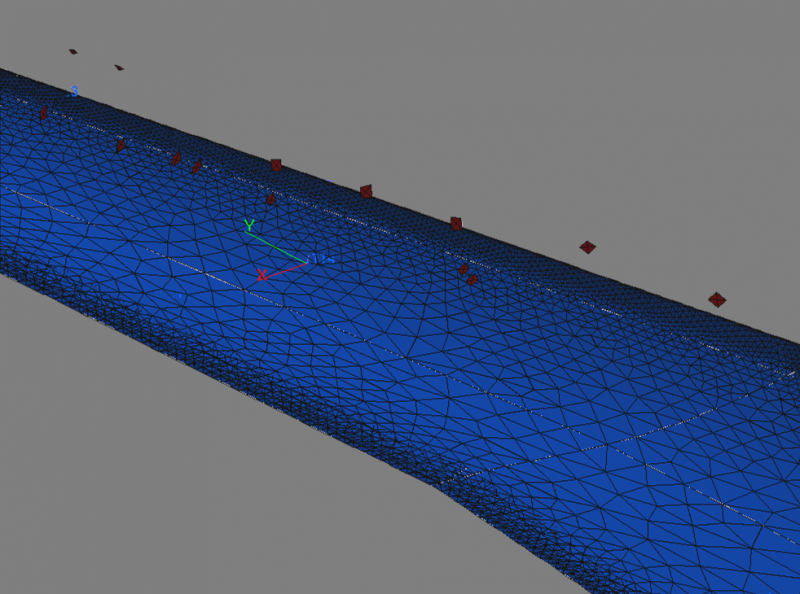

Surface Mesh Visualization

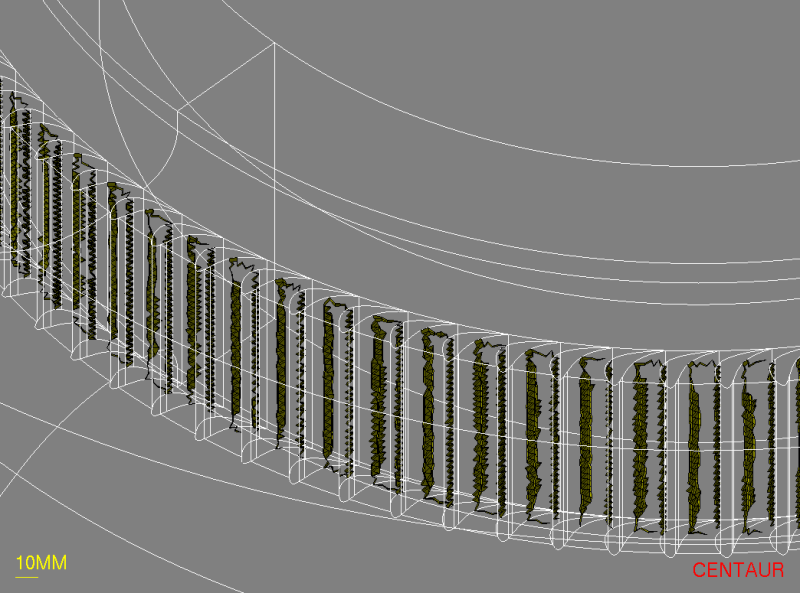

Prism / Hex Layer Visualization

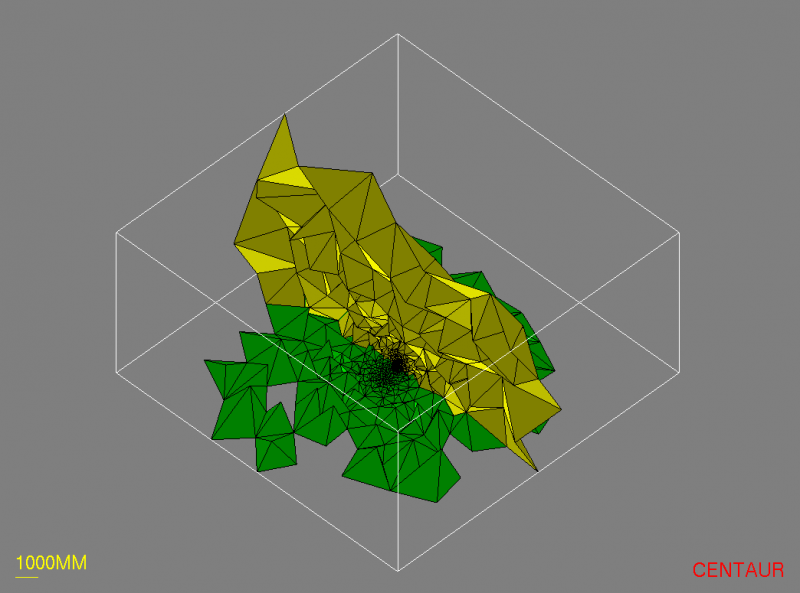

Tetrahedra Visualization
2D Grids

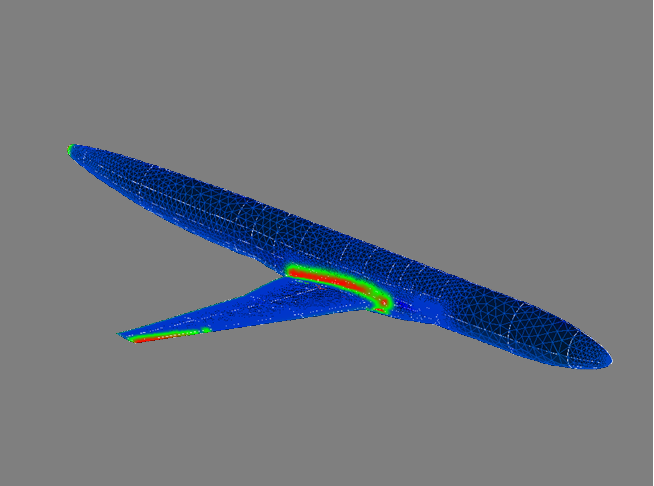

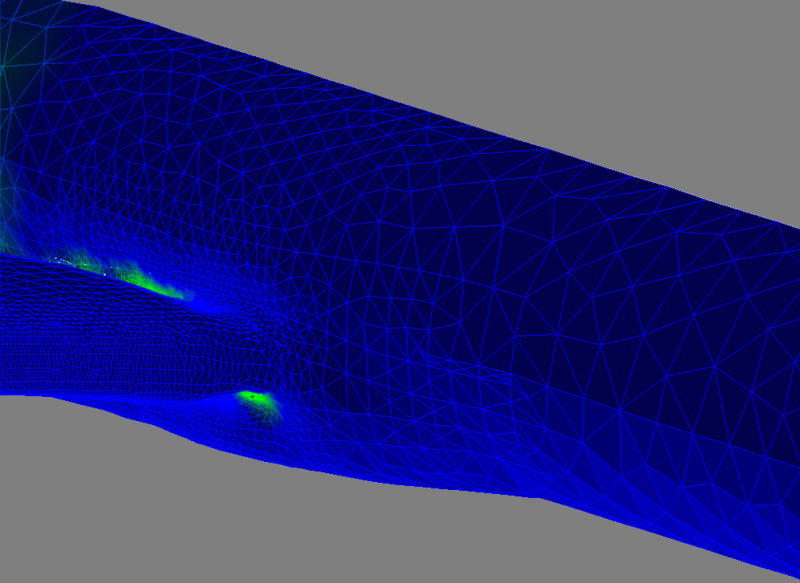

Poor Quality Elements

Examples

Click on an image to enlarge.
