Structured Quad Layer Regions

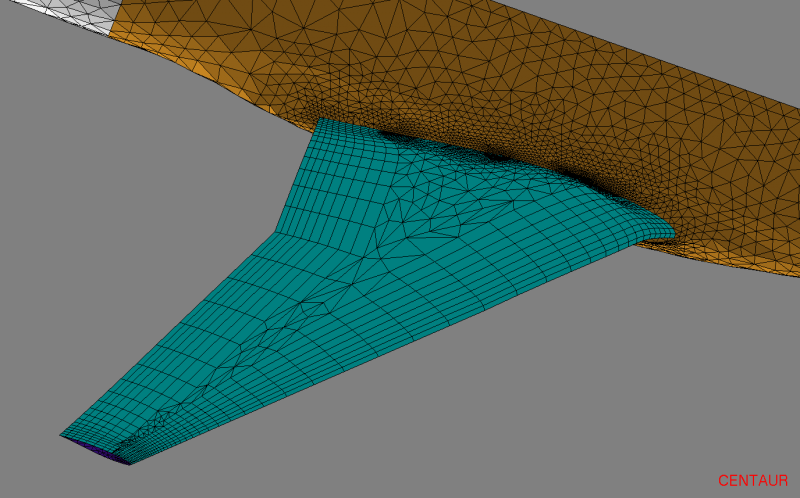

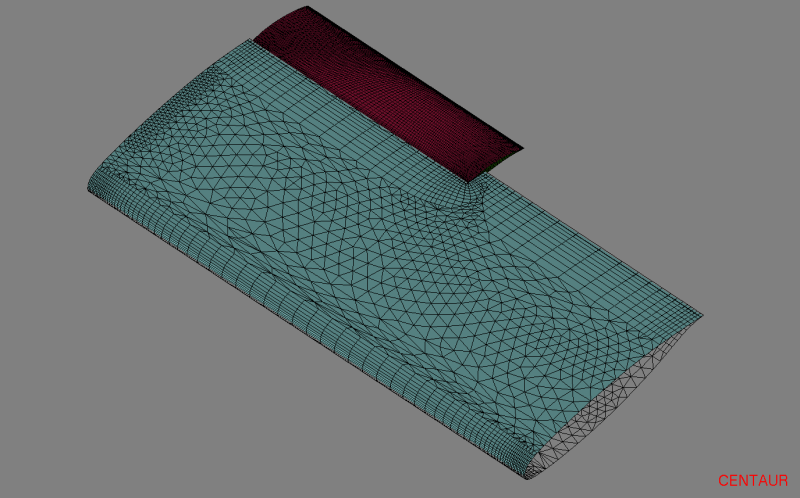

CENTAUR has the capability to generate structured quadrilateral layers on the surface. These quad faces are used to create high aspect ratio hexahedral meshes that save large numbers of elements. These surface meshes are geometrically aligned allowing for good quality meshes to be generated along the leading / trailing edges of wings, blades and other geometries.
