787 Dreamliner Passenger Aircraft

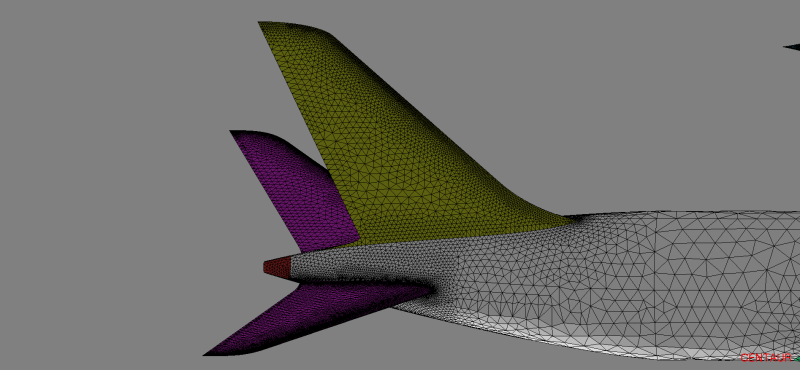

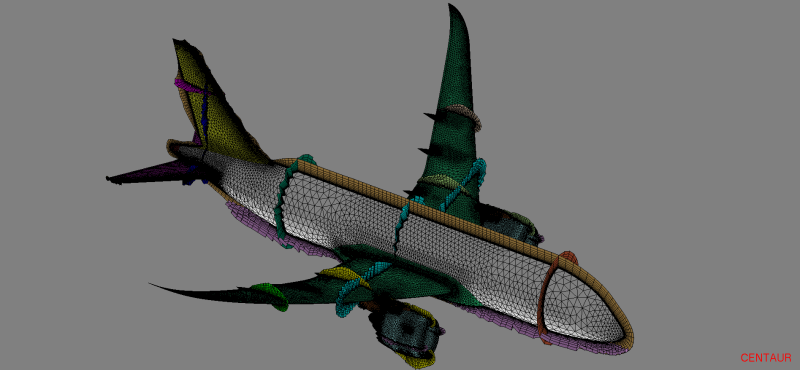

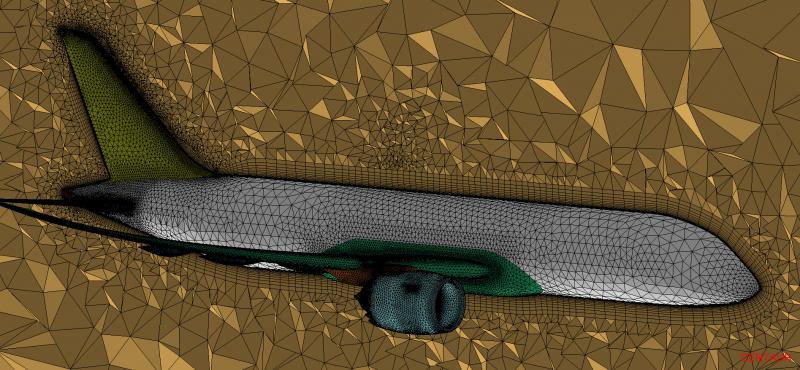

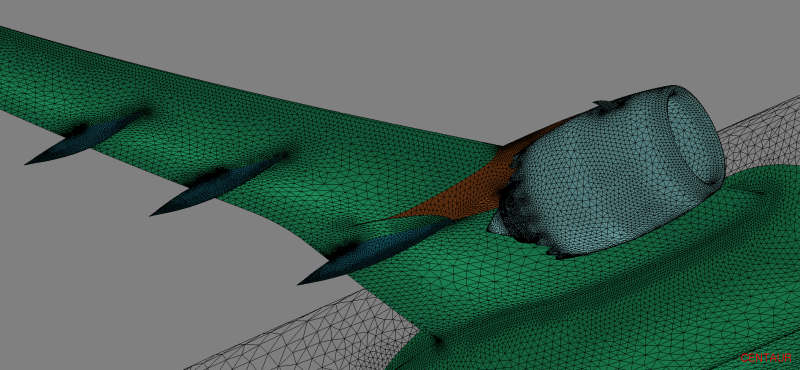

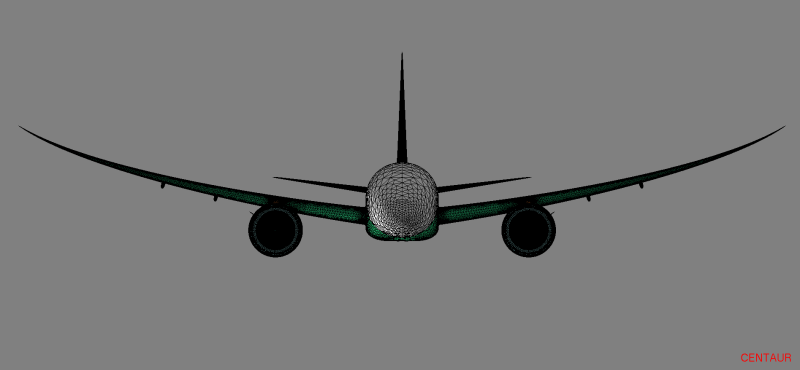

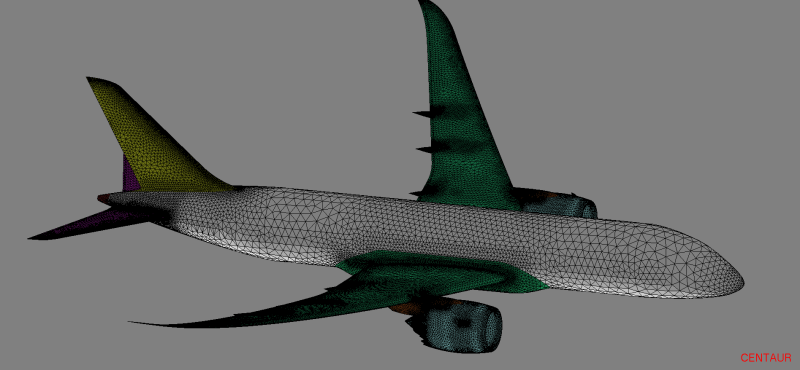

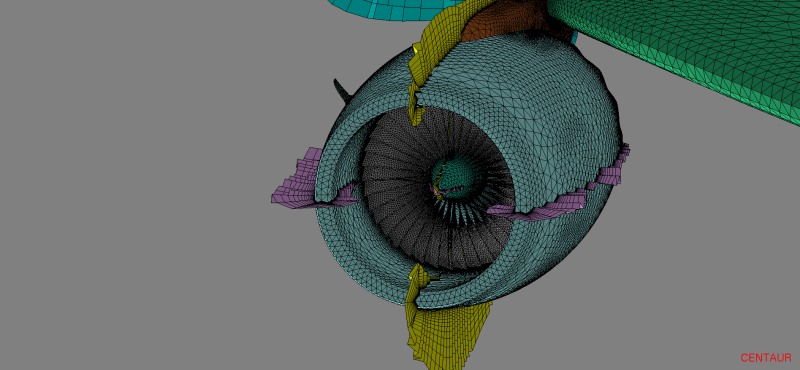

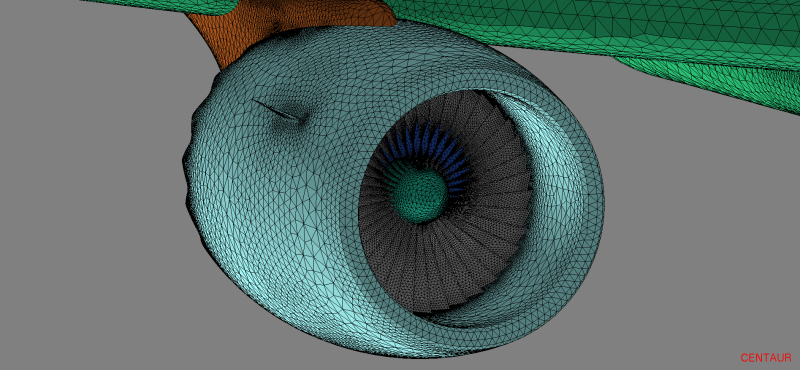

The 787 Dreamliner is a new passenger aircraft with a composite fuselage and wings. The twin-engine aircraft is designed for more fuel efficient cruising compared with previous generation aircraft. The model shown here was a full cruise configuration with installed engines and a full tail. A hybrid grid was generated using CENTAUR with a prismatic boundary layer mesh and tetrahedra away from the aircraft.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
