Eurocopter BK117 Helicopter

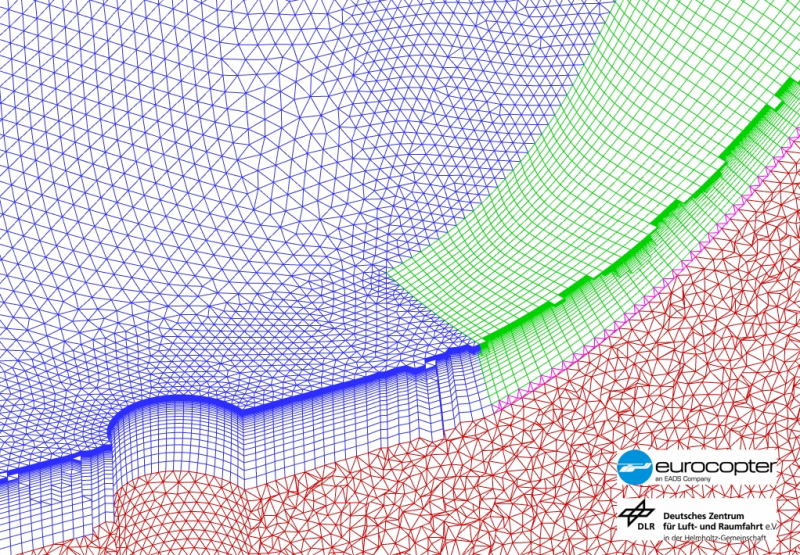

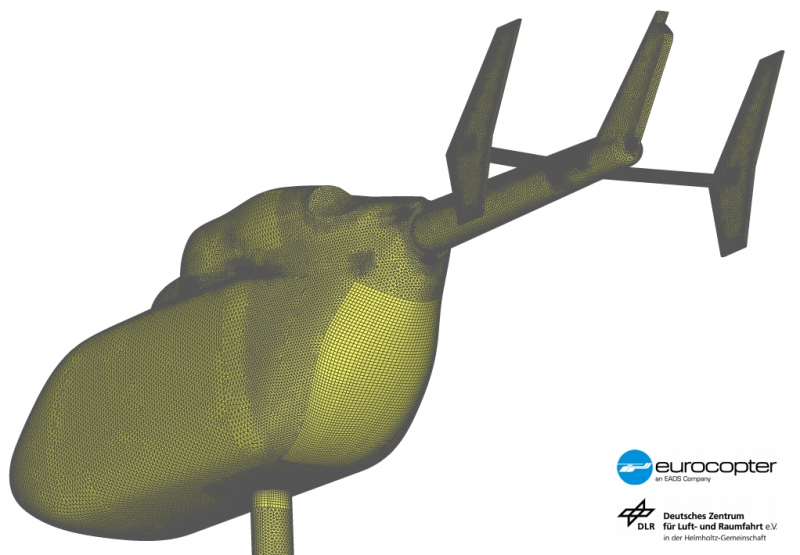

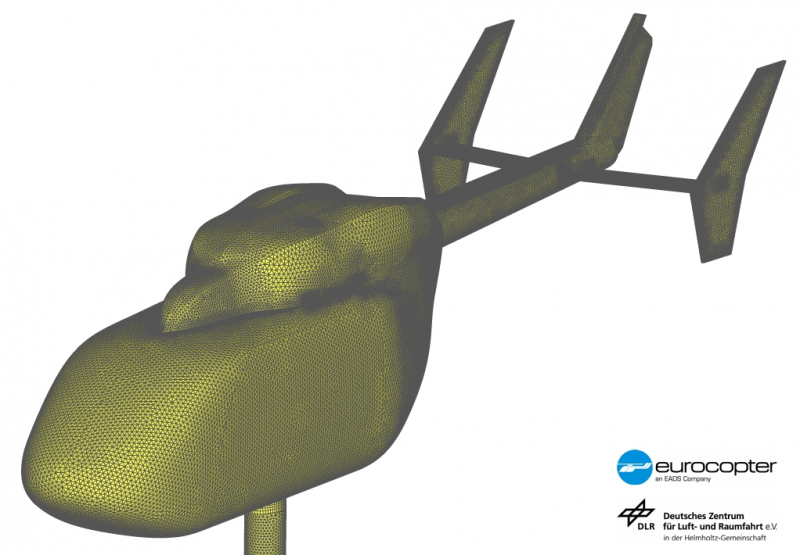

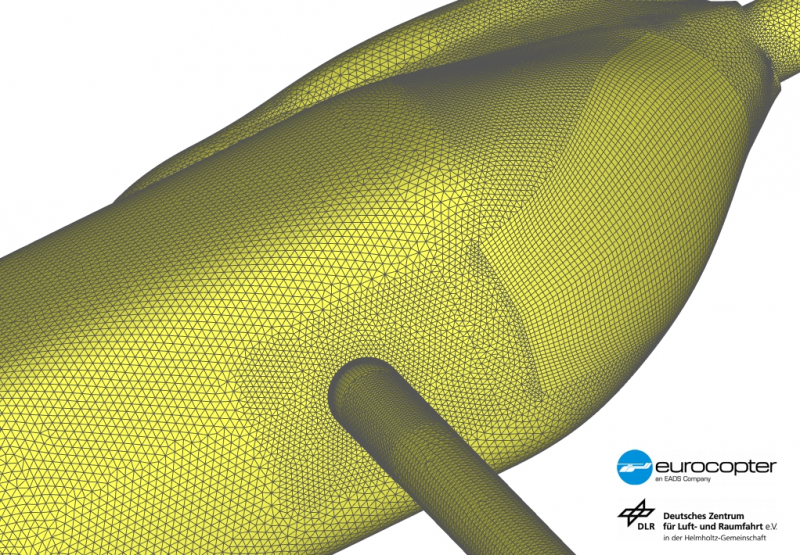

This model represents the BK117 Helicopter from Eurocopter. The model studied is a wind tunnel model and includes the cylindrical support used to mount the model in the wind tunnel. The mesh created using CENTAUR includes both prismatic and hexahedral elements in the boundary layer region and tetrahedra away from the surface of the geometry.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.

These images are courtesy of Eurocopter and DLR.
