Blade Disk Seal

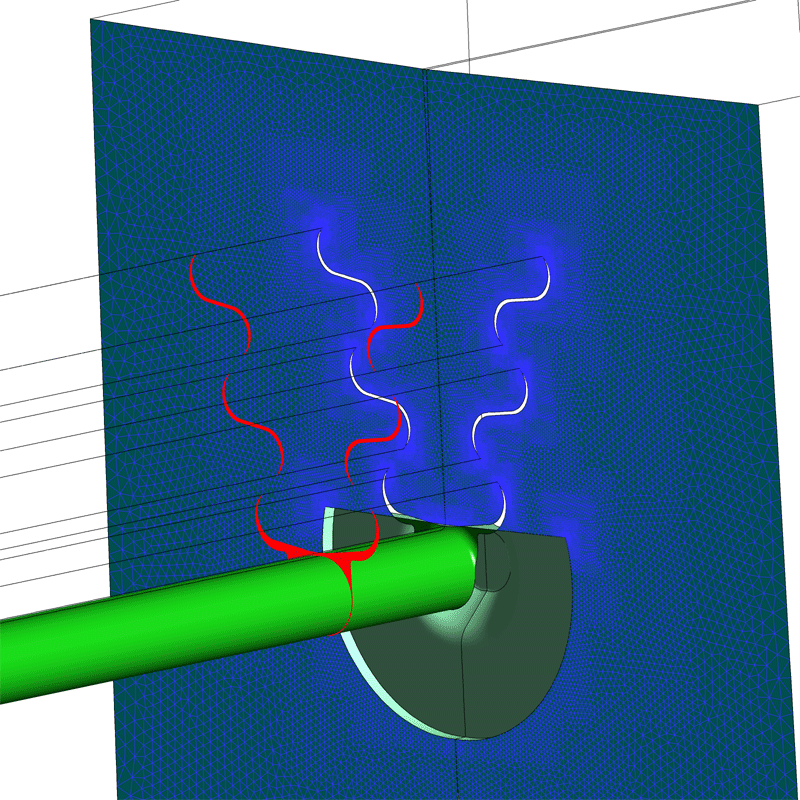

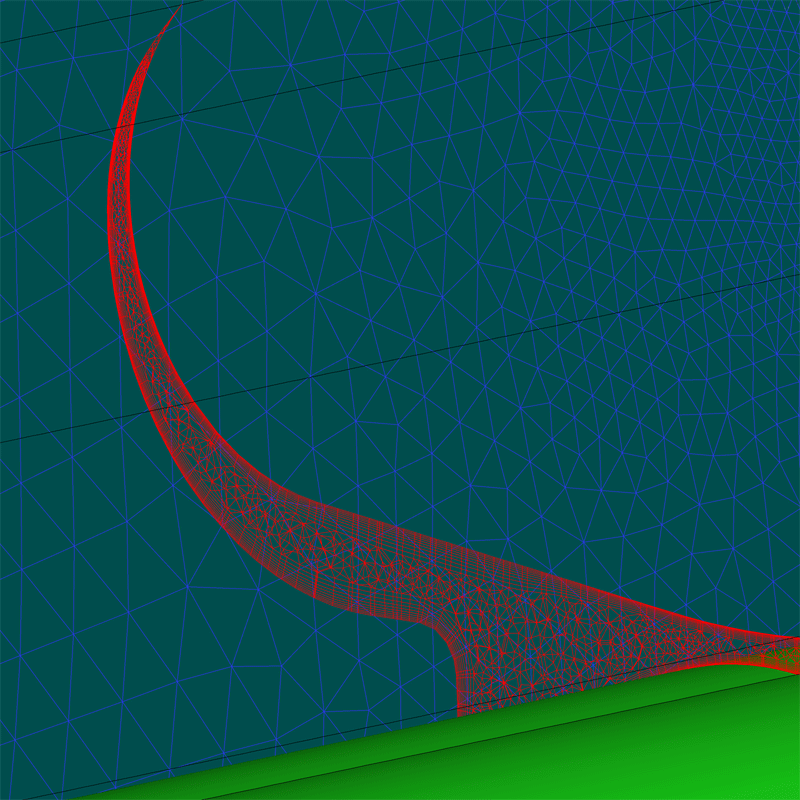

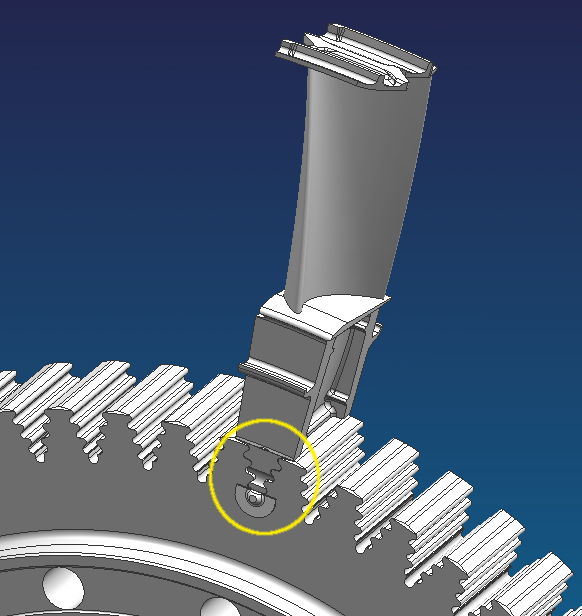

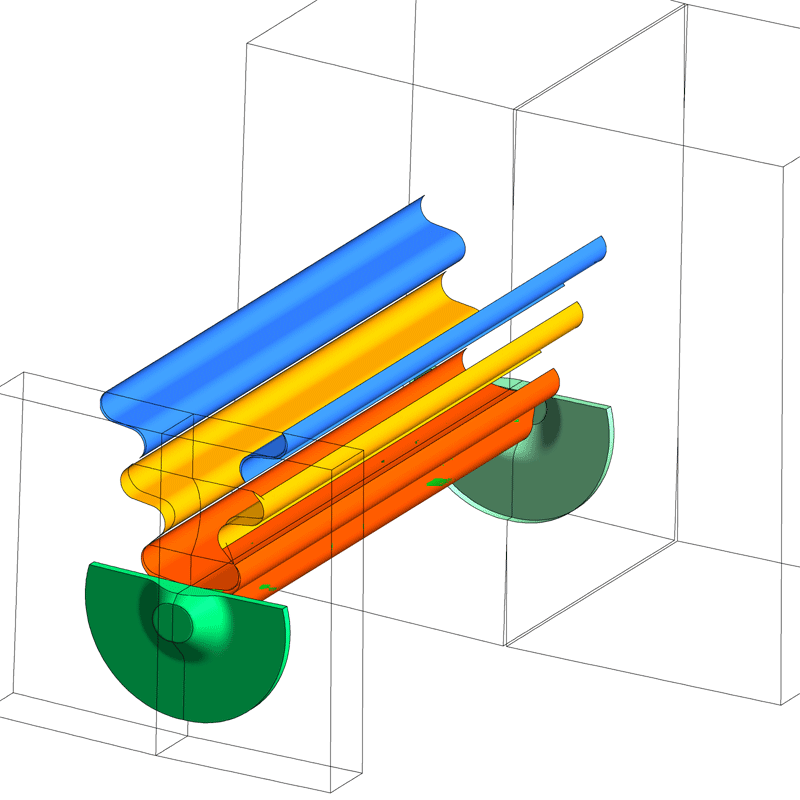

This geometry represents the airflow through the seal between the rotor and its attachment point on the hub. A hybrid mesh was created using CENTAUR. The images represent the mesh in this narrow region including elements extending into the tangential ends of the seal geometry.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.

These images are courtesy of GE Nuovo Pignone.
