Computational Grids
Complex Geometries and Fields
CAD Creation - Parametric Design


Simple Steps to Geometry Creation

The geometry is created in simple steps. An example 2D model of an airfoil (generated geometry and mesh) is depicted below:





2D Sketching

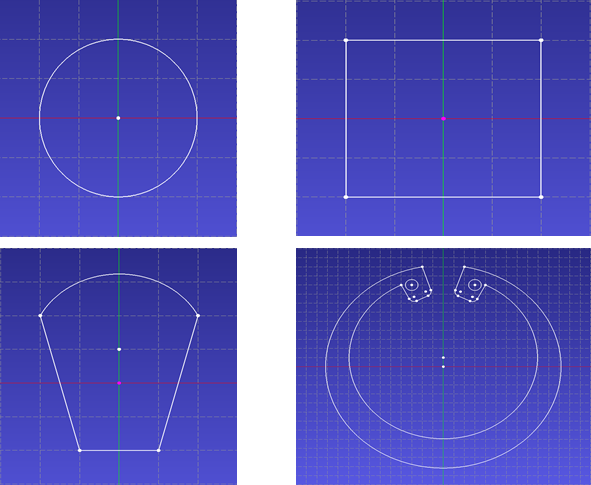

Set of simple tools can yield complex geometries:


  • Point

  • Line

  • Polyline

  • Rectangle

  • Cirlce

  • Arc

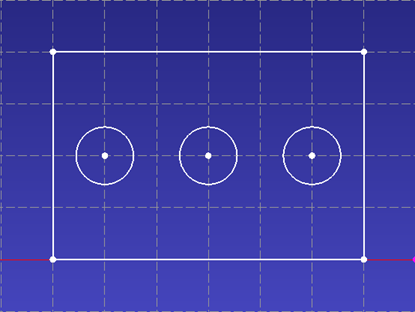

Linear / Rotational Patterns:

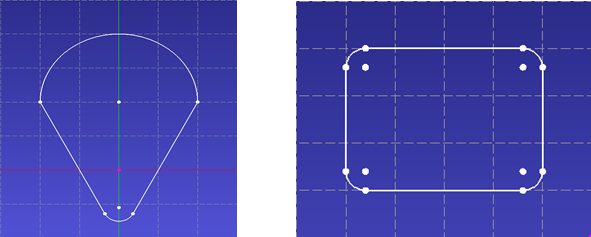

  • Fillets

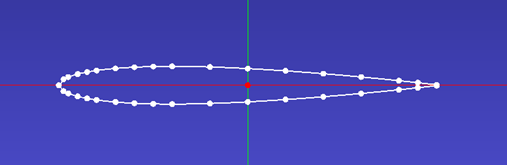

Importing Coordinates:



3D Basic Operations

Very simple operations are sufficient for creation of realistic CAD.

Extrusion:

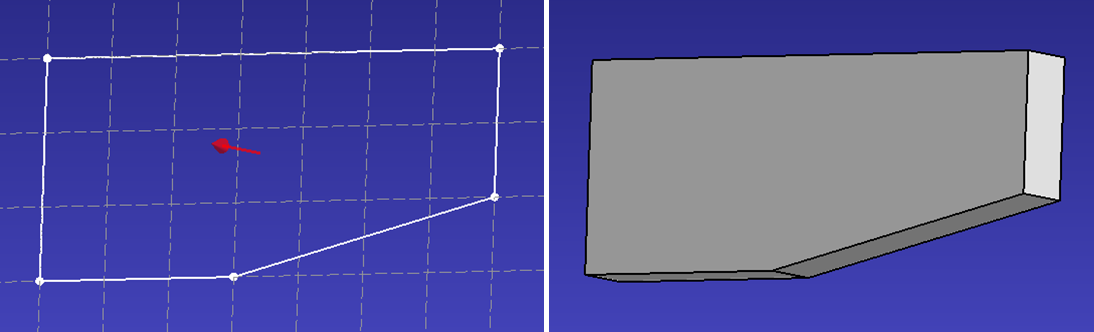

Basic Extrusion

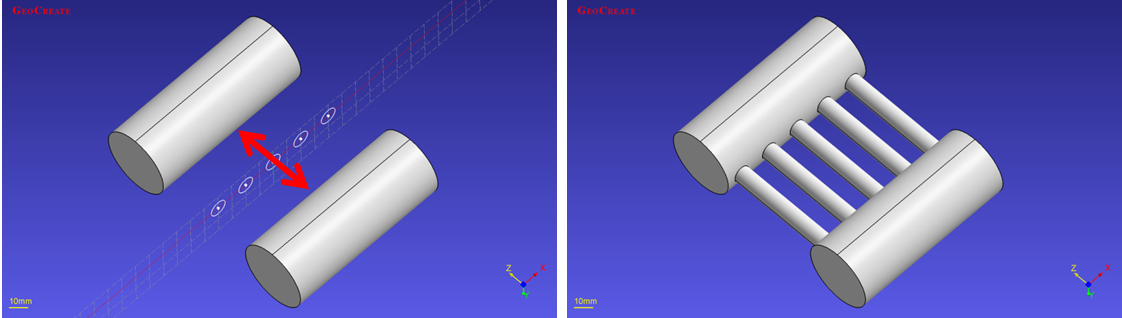

Bi-Directional Extrusion

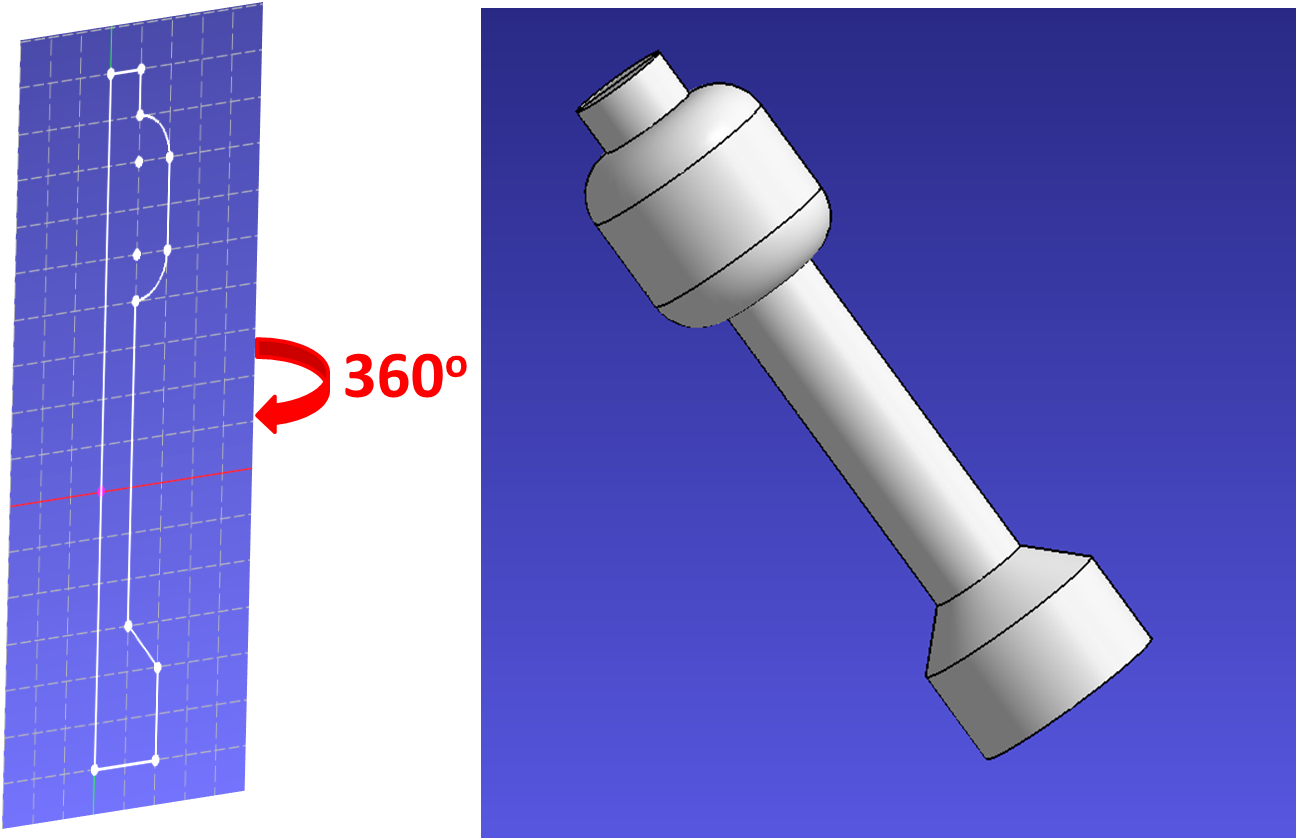

Revolution:

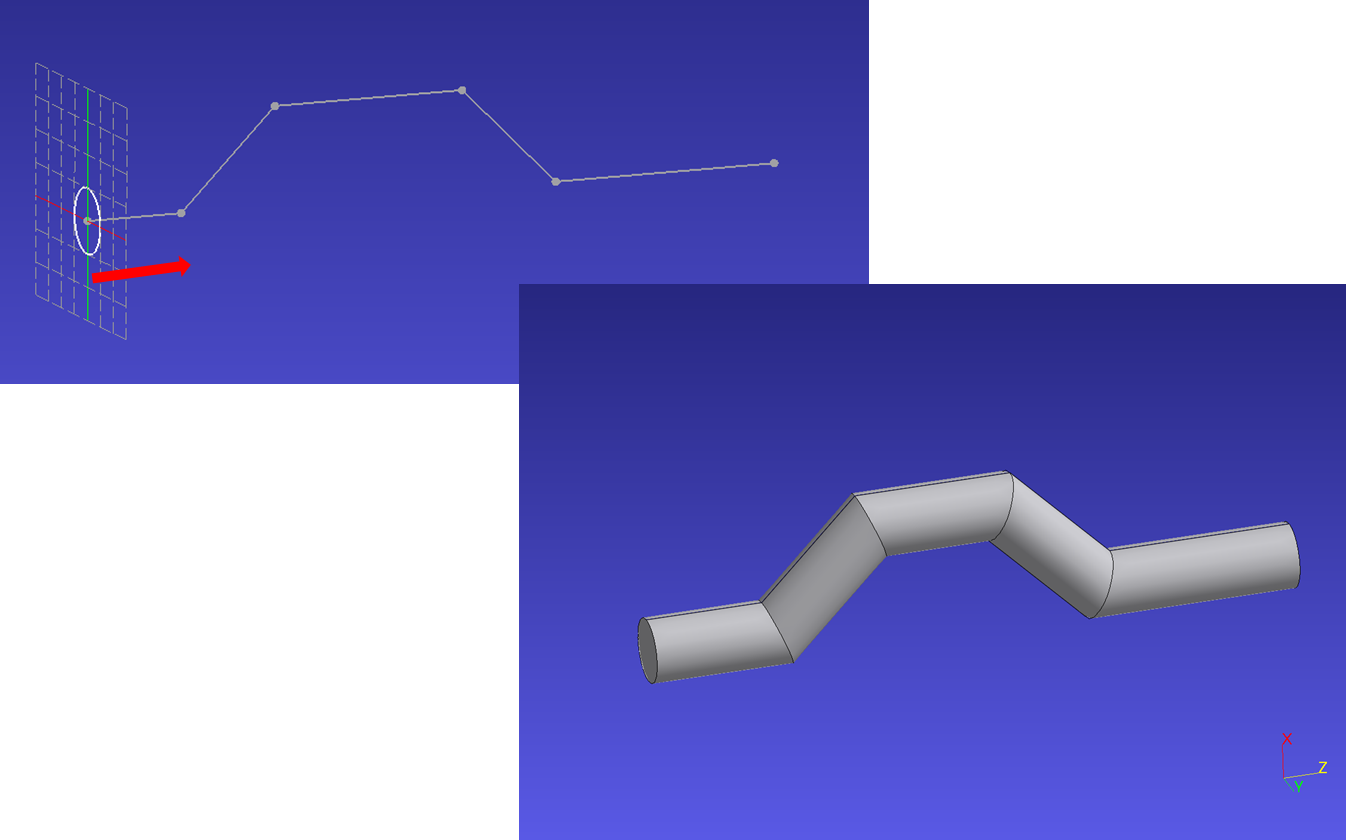

Sweeping:

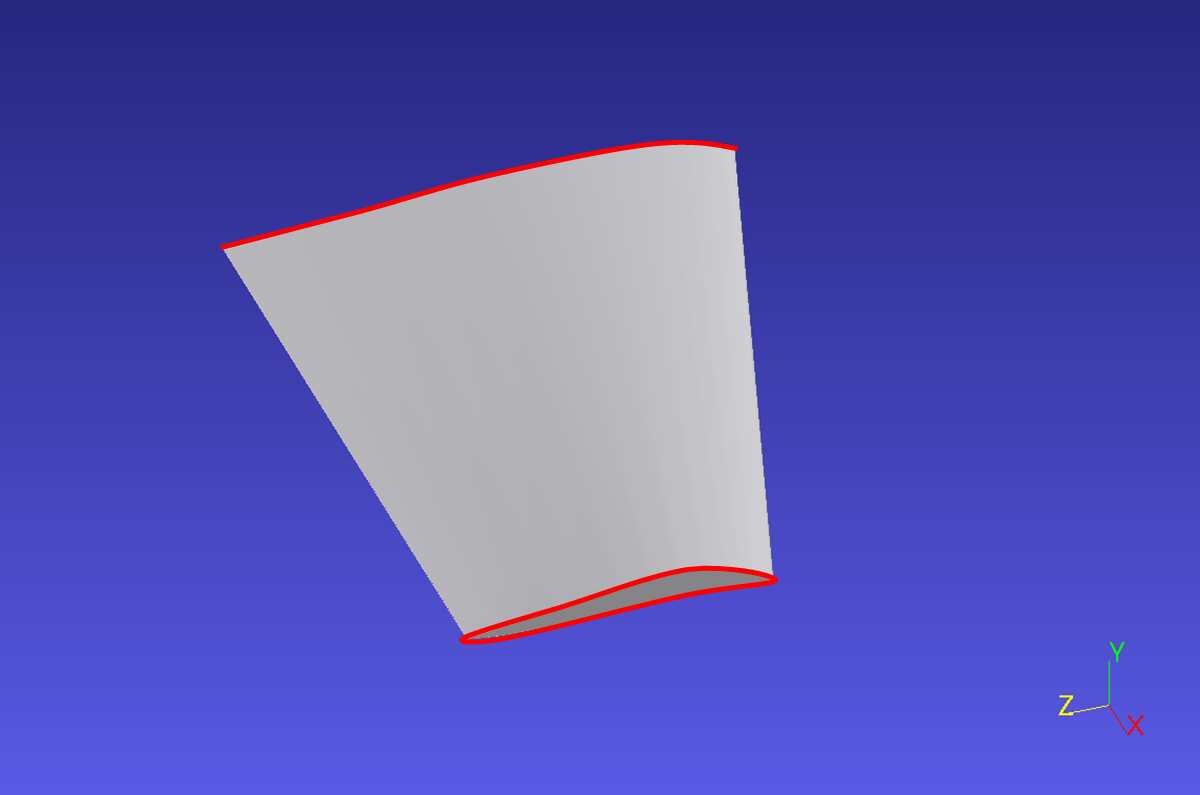

Lofting:

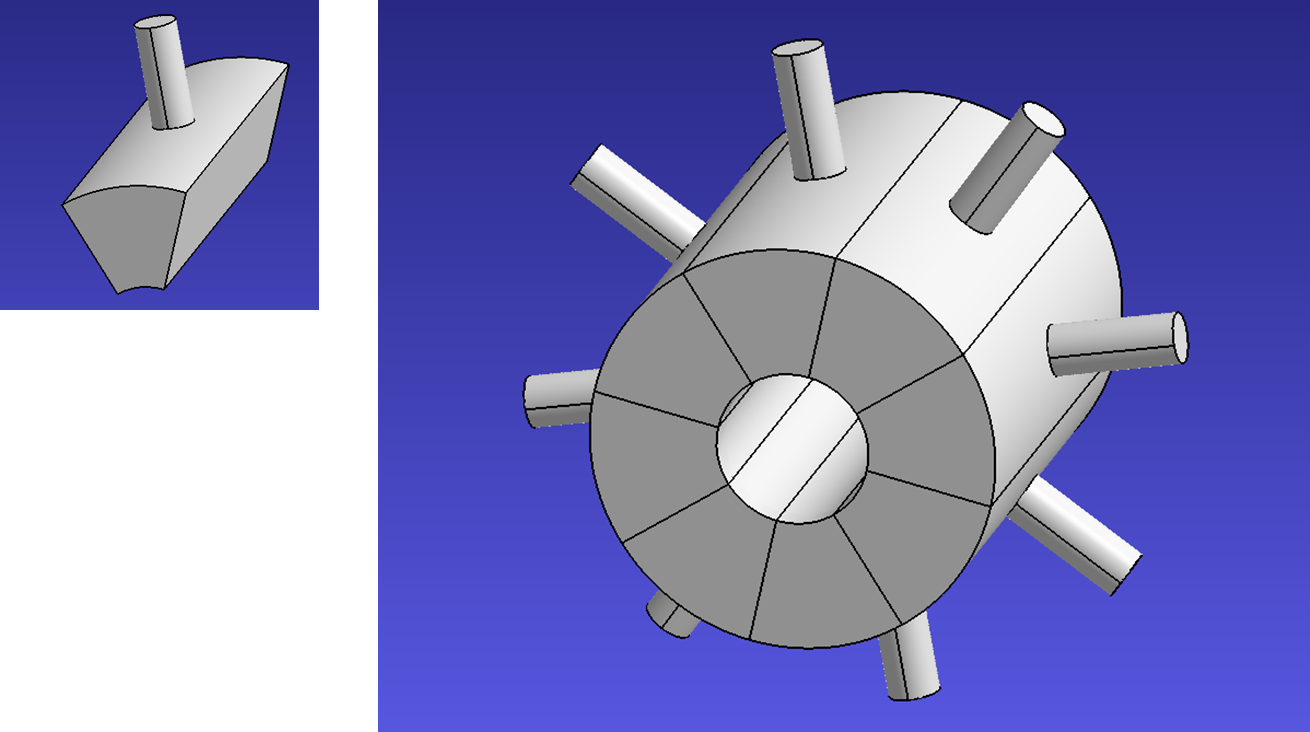

3D Patterns

Simple parts can be repeated to produce more complex patterns.

Linear / Rotational Geometries:

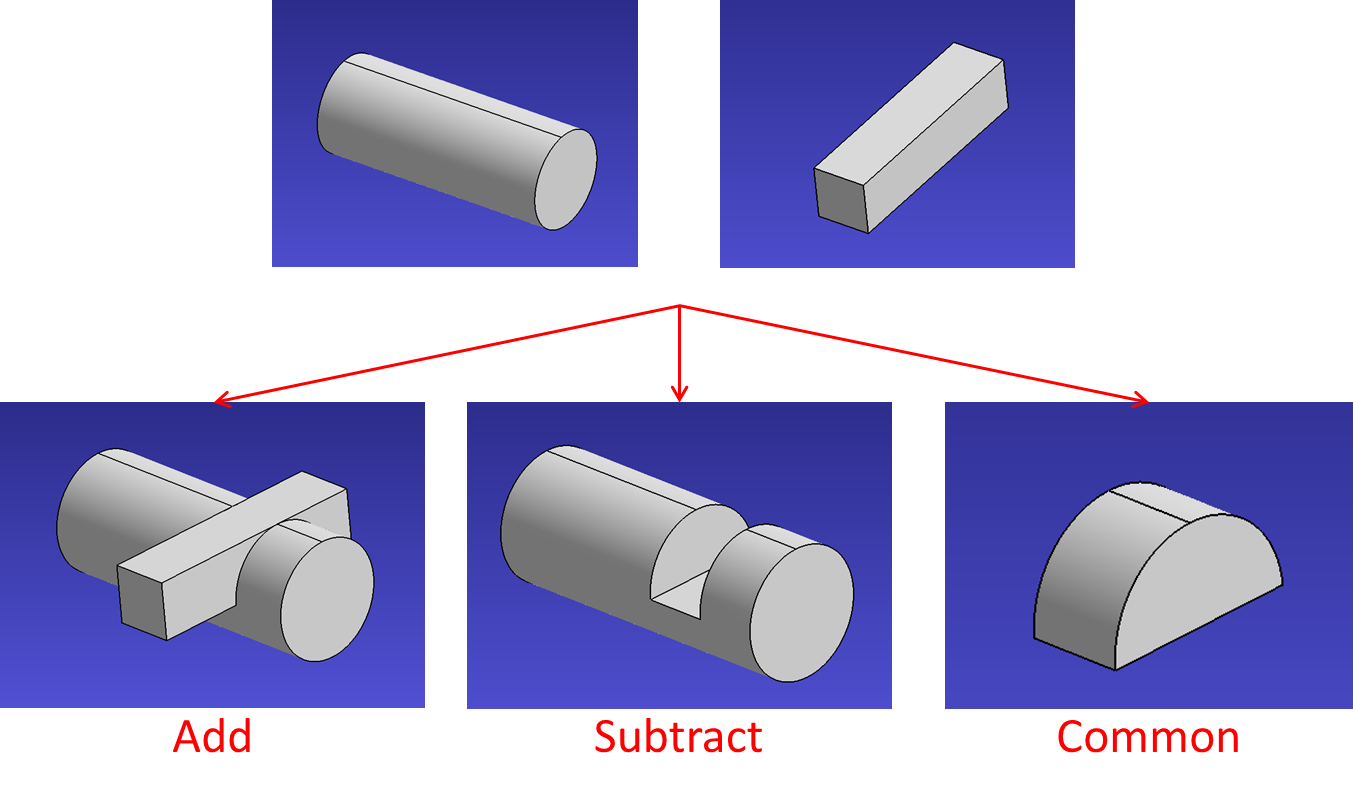

Combine Different Solids (Booleans)

Very general solids can be created via Boolean operations between individual parts.
