CAD Creation - Parametric Design


Re-Designs

Re-designs can be Parameterized or History-based. A parameterized re-design process allows to modify every parameter of a model, while a history-based process allows quick and automatic re-designs based on user-specified input parameters. The hierarchic dependence of the design features facilitates the re-design process. If changes are applied to one feature, all the dependent features will be automatically regenerated.


Example of Parameterized Re-Design.

History-based Re-Design: Changing a feature related to the main pipe regenerates all the dependent features (secondary pipes).



Design with Templates

Models with pre-defined parameters:

  • Build-In Libraries
  • Custom


Templates are handy for automatic re-desings:

  • Input parameters from CENTAUR
  • Input parameters from Excel
  • Apply scripting


Automated CAD Construction.

   Parametric Design: Wing Example.



Templates: Libraries

Extensive database of existing designs available:

  • Aircraft: airfoils, wings, tails, fuselages, engines
  • Turbomachines: gas turbines, steam turbines, hydro turbines, wind turbines
  • Helicopters

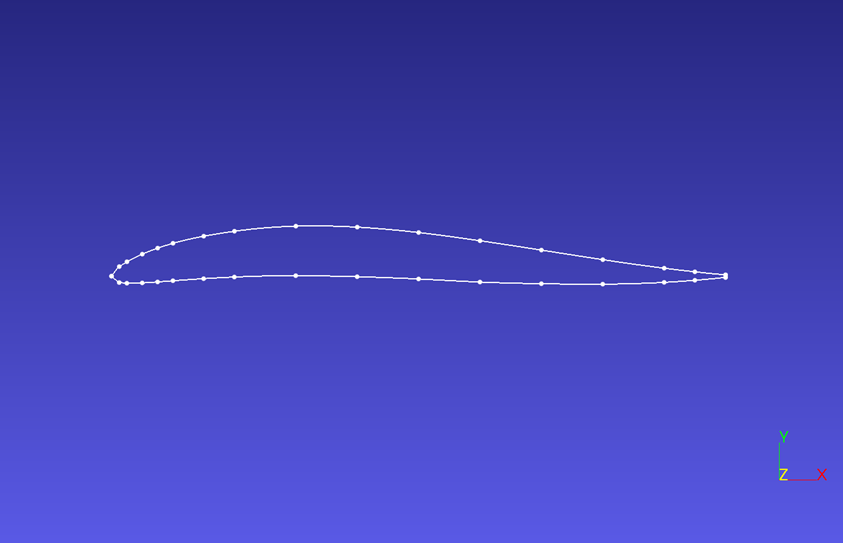

Example of an airfoil template.

More Options:

  • Create your own
  • Combine templates
