Centrifugal Compressor Inlet Volute

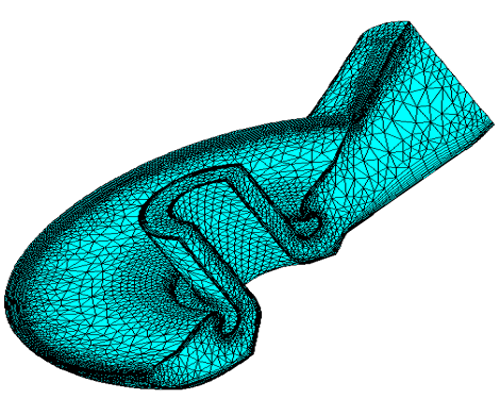

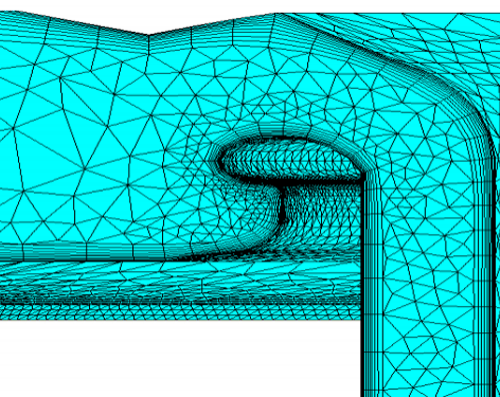

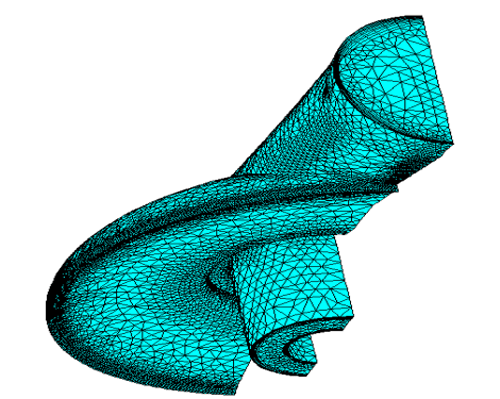

This geometry represents flow through a typical centrifugal compressor inlet volute. A hybrid mesh was created for this geometry using CENTAUR with prisms in the boundary layer and tetrahedra away from the walls.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.

This geometry is courtesy of the University of Florence.
