F16 Fighting Falcon Fighter Aircraft

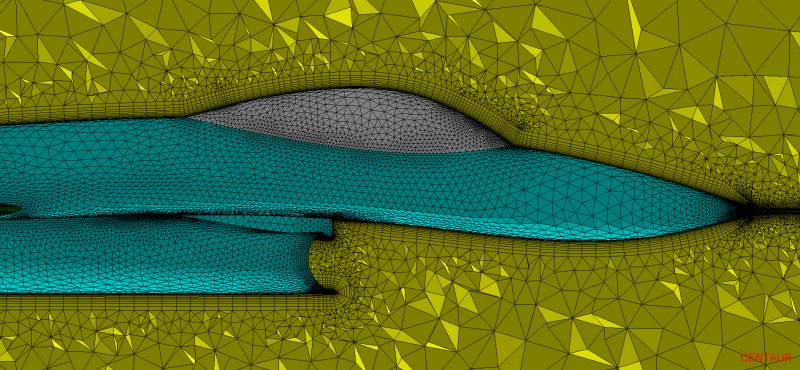

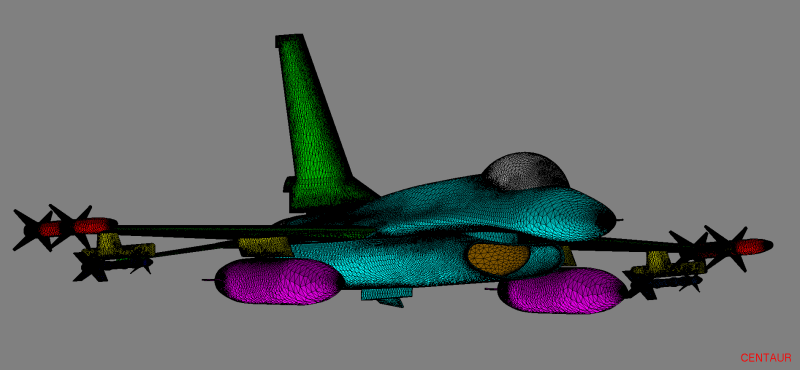

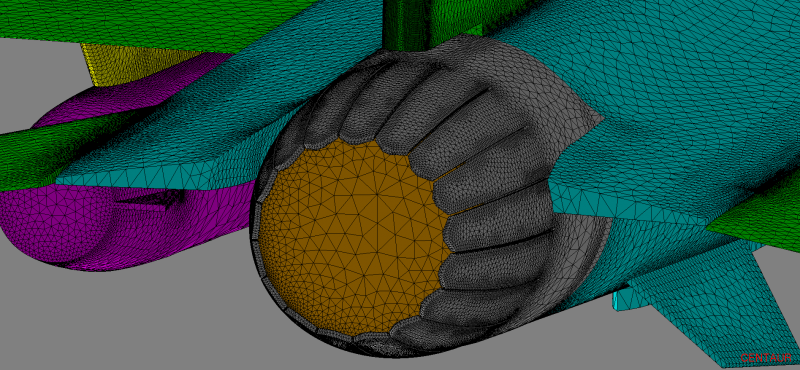

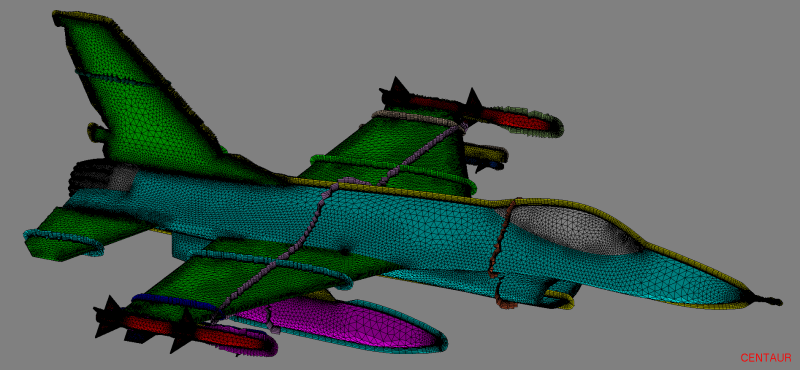

The F16 Fighting Falcon is a fighter jet powered by a single jet engine. The aircraft performs multiple duties including both air and ground attack. The model that was meshed was an asymmetric configuration including various underwing and wingtip stores. A hybrid mesh consisting of both prismatic boundary layer elements and tetrahedra in the interior was created using CENTAUR for the configuration.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
