Centrifugal Compressor Impeller

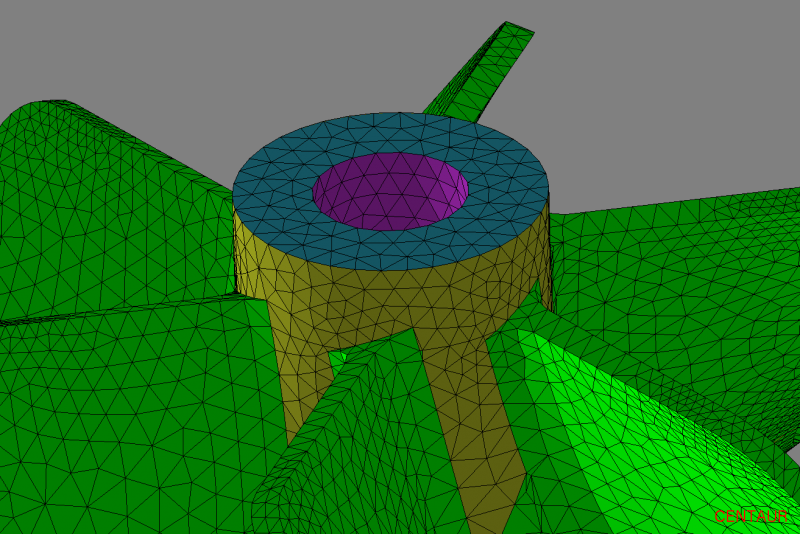

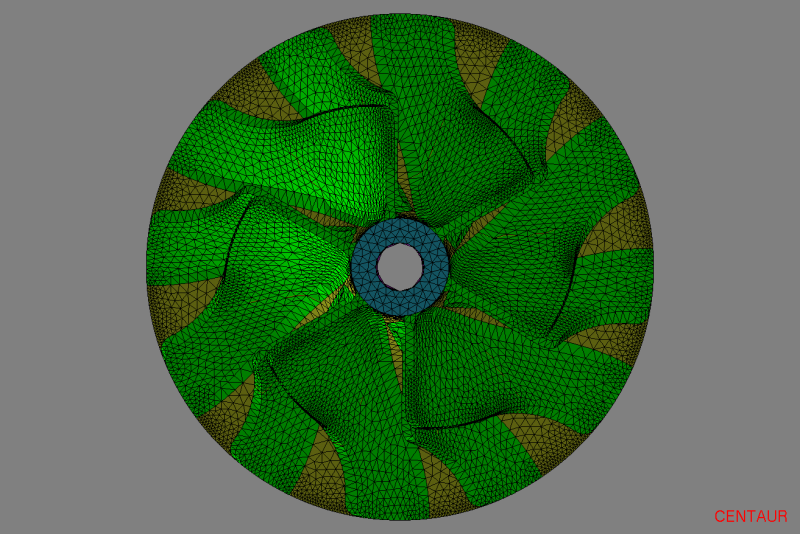

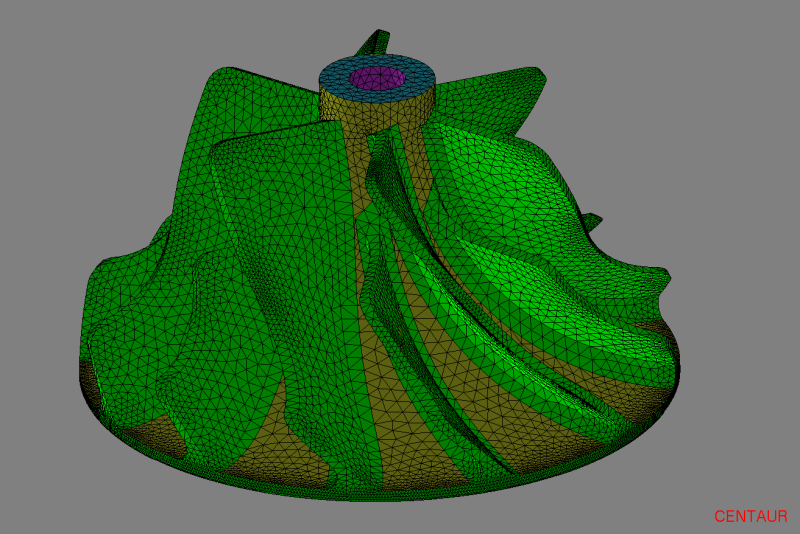

This geometry represents the rotor disk (impeller) of a centrifugal compressor. A mesh was generated using CENTAUR for the solid part.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
