Mirage 2000 Multirole Fighter

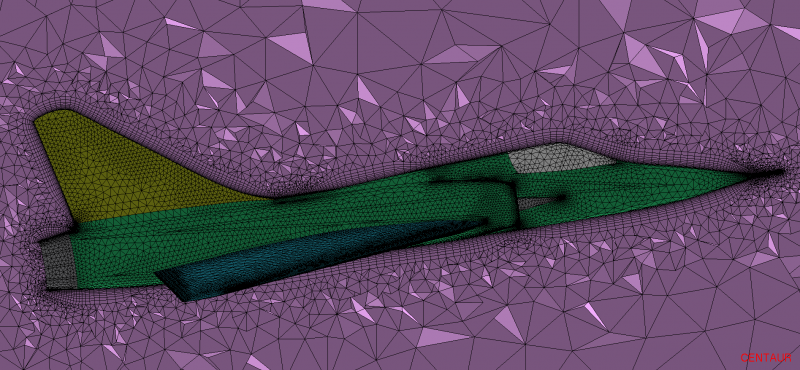

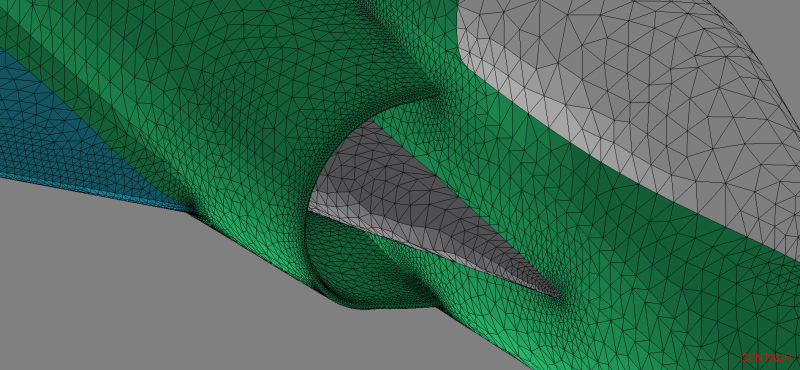

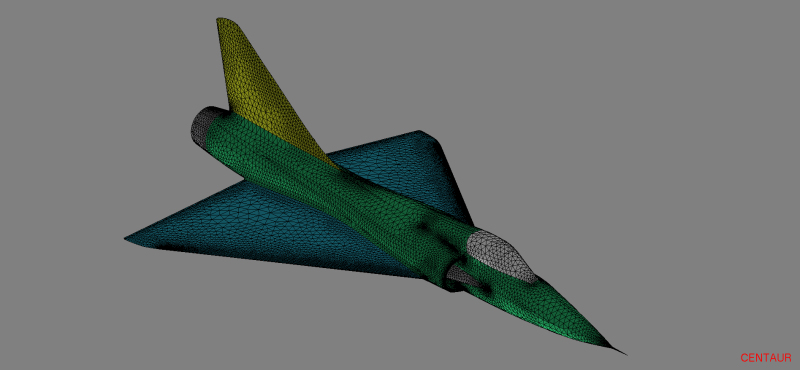

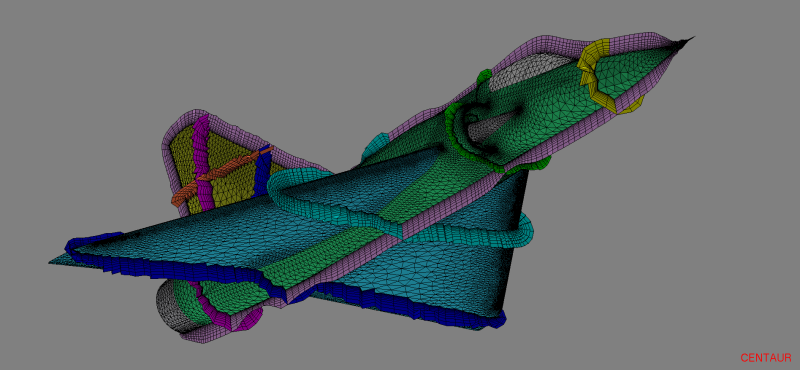

The Mirage 2000 is a multirole fighter capable of both air and ground attack. The single engine aircraft has a thin highly swept delta wing with two air intakes flanking the cockpit. The hybrid mesh for the geometry created using CENTAUR includes both prismatic elements in the boundary layer and tetrahedra away from the aircraft.
