Polyhedral Mesh

A conventional CENTAUR mesh can be converted to polyhedral. Directional polyhedra are employed for the boundary layer regions.

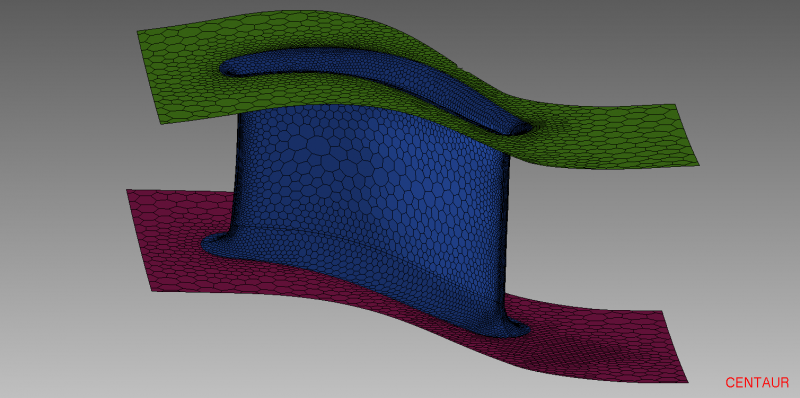

All clustering and automation properties of conventional CENTAUR grids are preserved. An example mesh consisting of polyhedra is shown below:

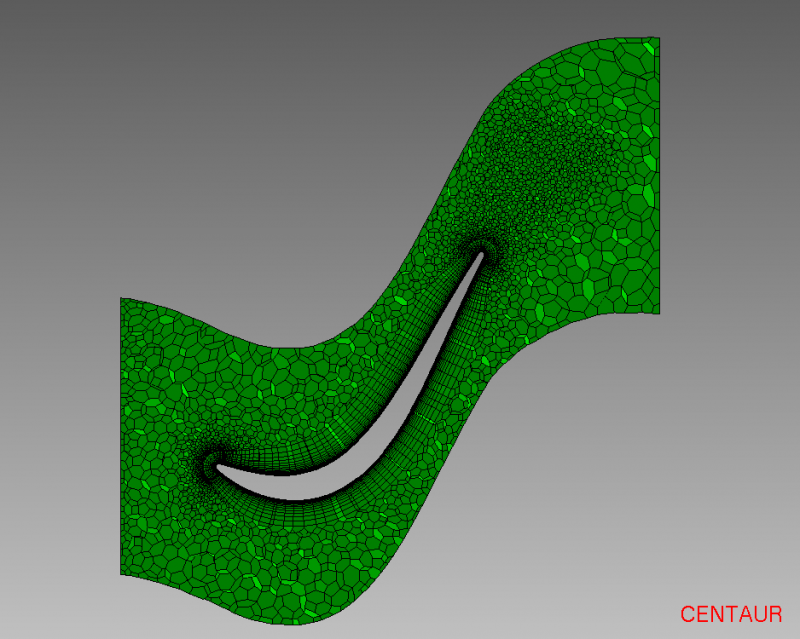

Polyhedral Mesh Cut at the Midspan of a Blade Passage Configuration.

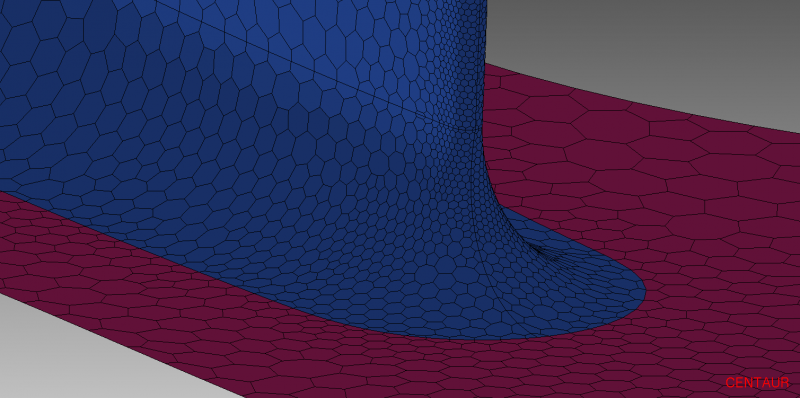

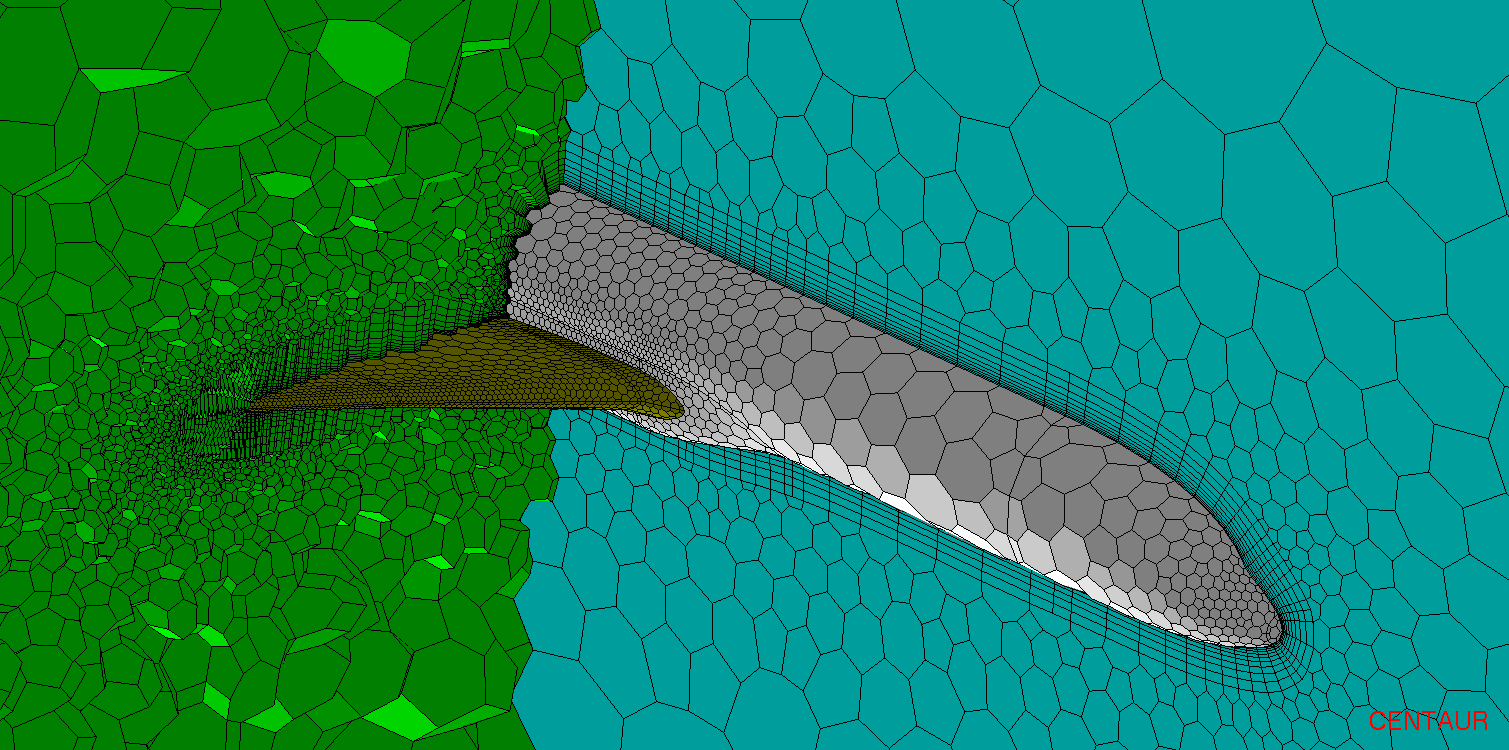

Example: Directional Polyhedra for Boundary Layers
