Refinement / Coarsening

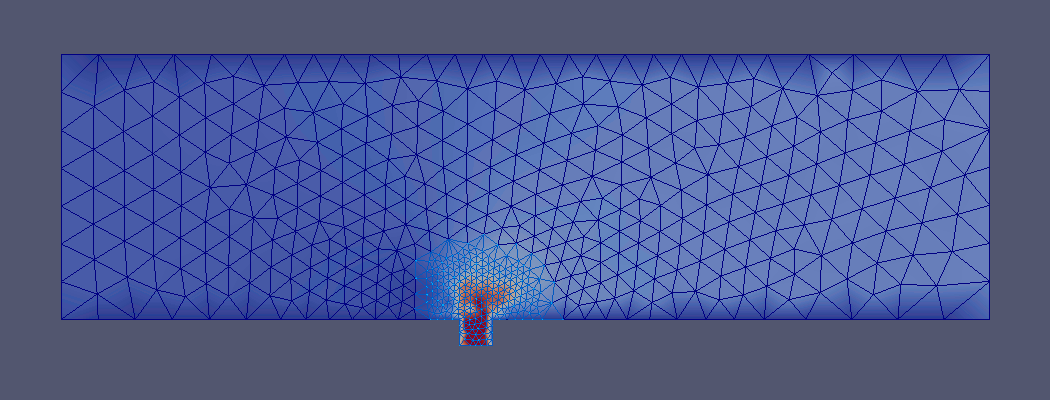

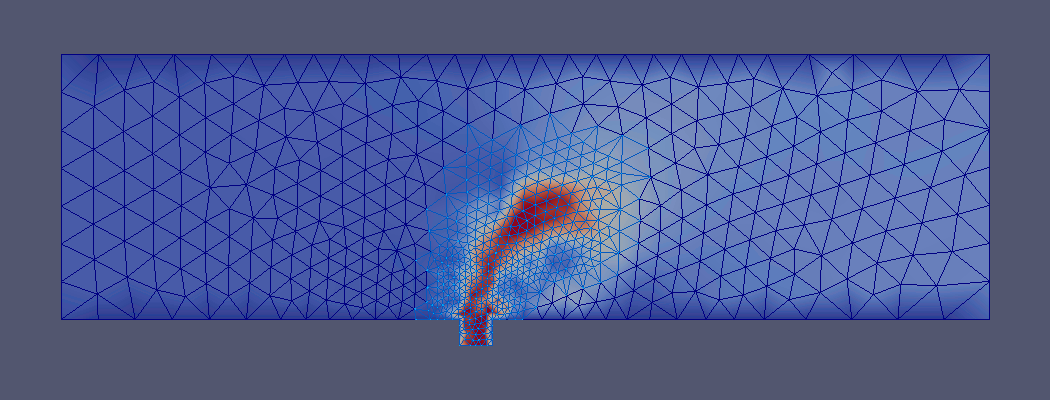

The adapter supports both element refinement and coarsening. Coarsening locally removes areas that were previously refined.

Optimize Local Mesh Resolution:
  • Automatically based on field feature detection
  • Manually

Features:
  • Smooth shapes of the refinement regions
  • Continuous Embedded Mesh Interface (No Hanging Nodes)
  • All common element types supported:
    • Hexahedra
    • Prisms
    • Tetrahedra
    • Pyramids



Surface Fidelity

The adapter ensures that the fidelity of the CAD surface is maintained throughout the refinement process.

Capabilities:
  • New surface nodes match CAD surfaces exactly
  • Mesh validity is ensured

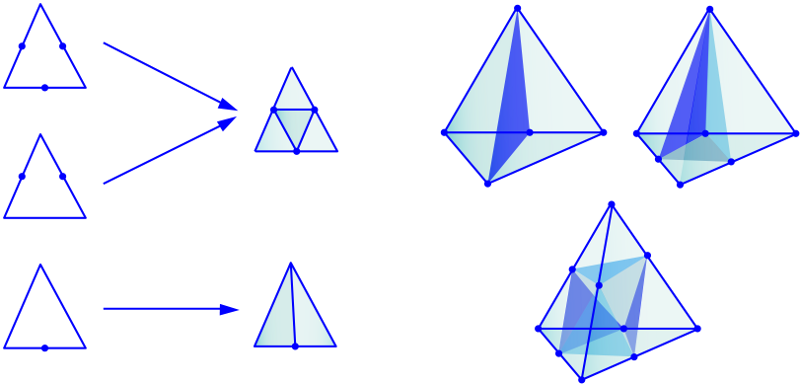

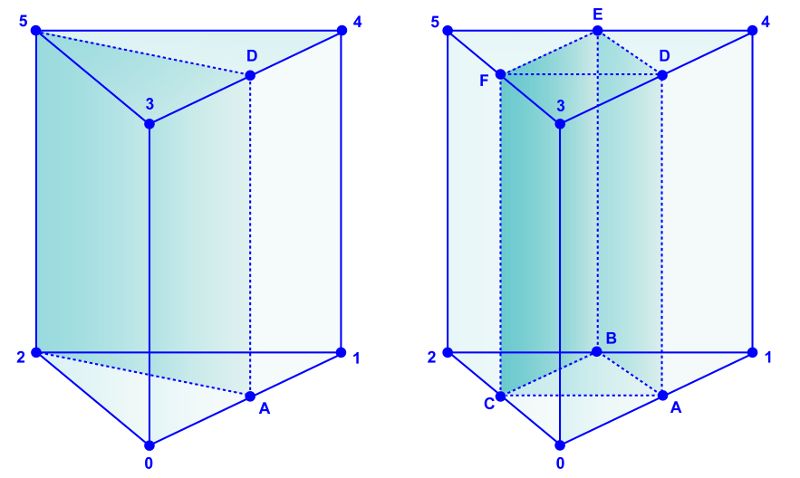

Diagram:

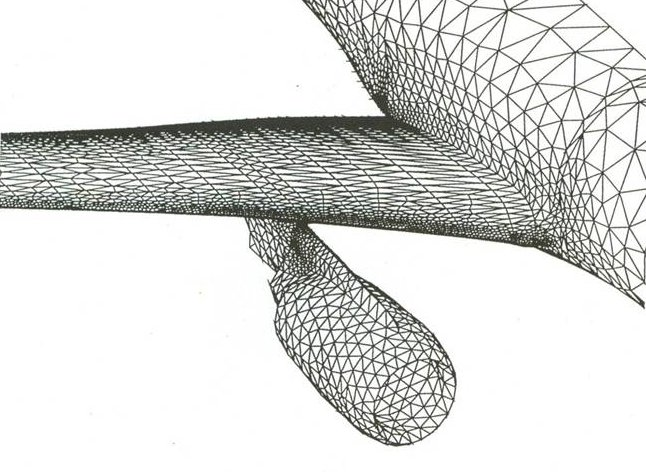

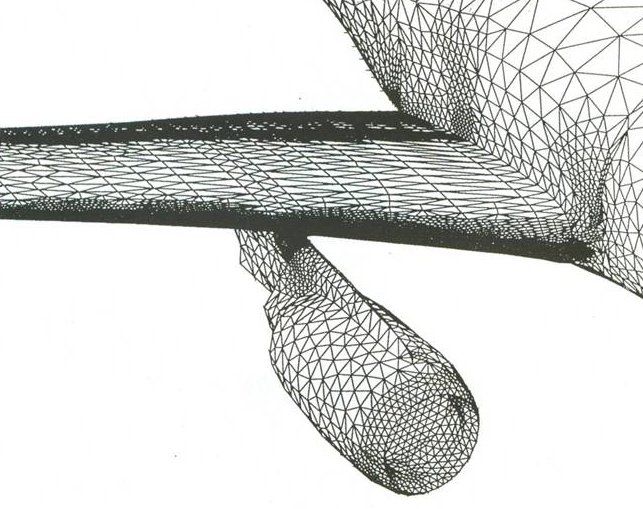

Original Mesh Refined Mesh

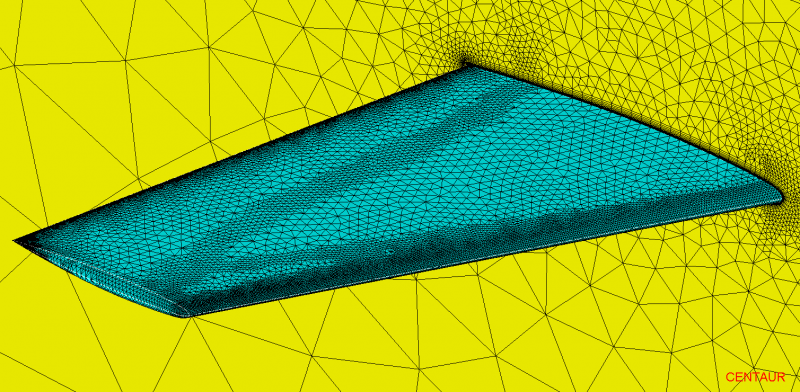

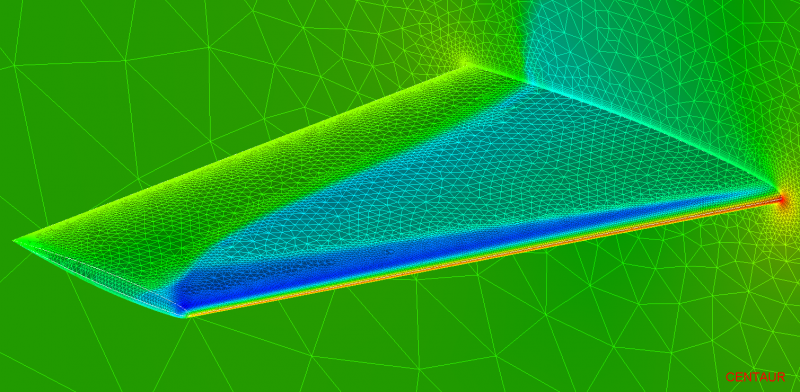

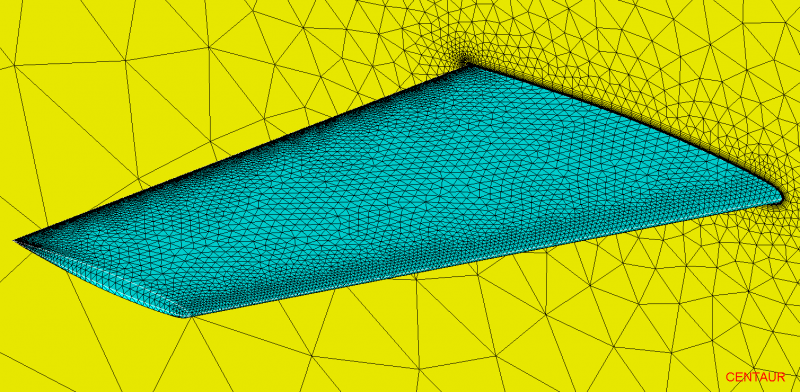

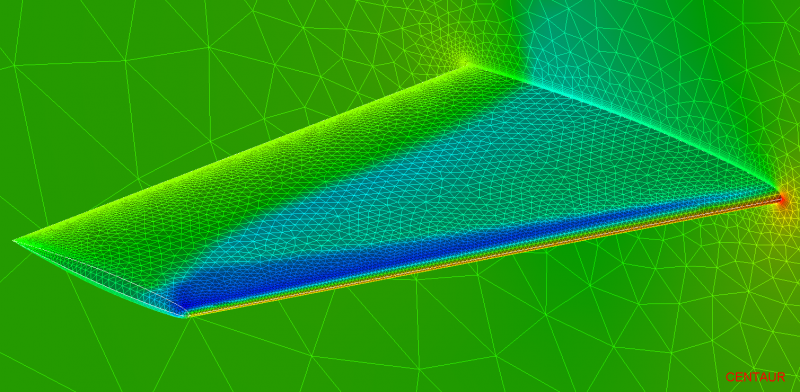

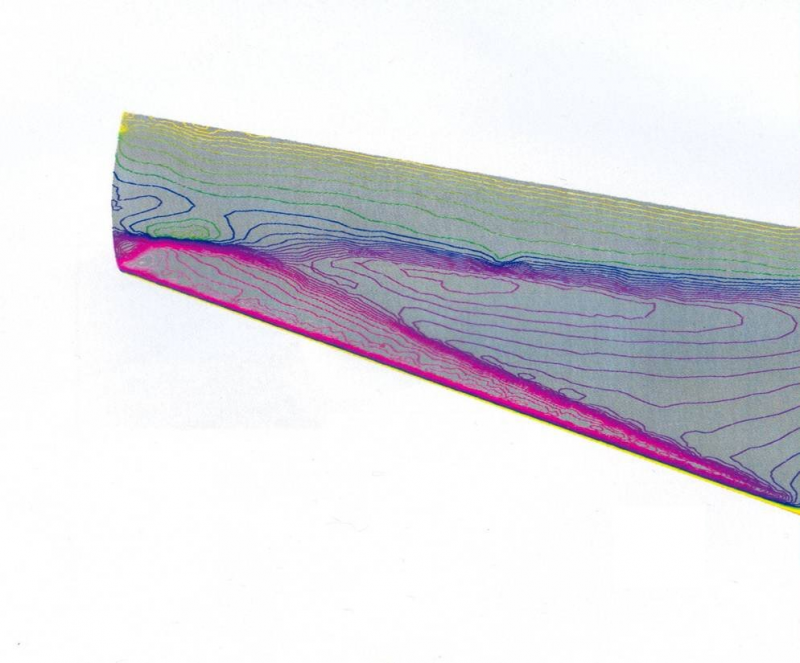

Transonic Flow on a Wing

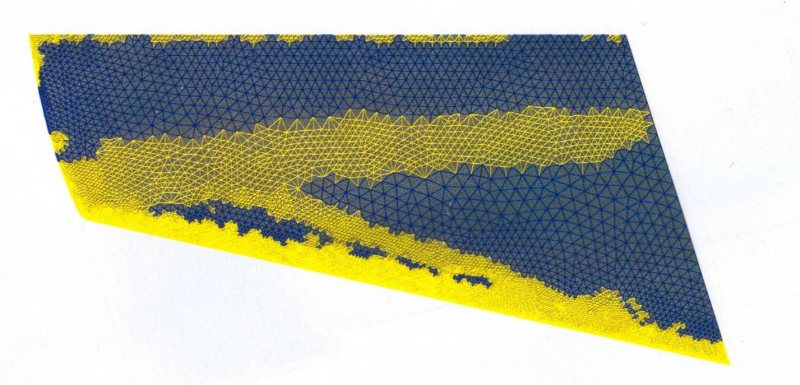

The original mesh is refined automatically in the location of a standing lambda shock on this transonic wing. The yellow mesh shows the extra refinement on the surface.


Refinement Example

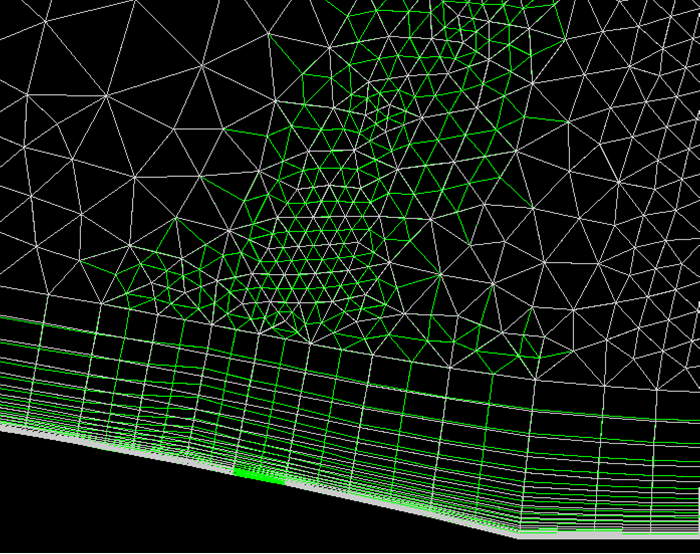

The white lines show the original mesh and the green lines show the refined (and redistributed) mesh. Note that the prism stacks have been directionally refined maintaining the layer structure.


Post-Refinement Example

In this example of the flow around a turbine blade, the automatic feature detection did not identify the entire leading edge and blade tip regions. To properly resolve the flow in this region, the refinement area was manually extended to include this location. The areas of the mesh that will be refined are shown in blue in the pictures below.

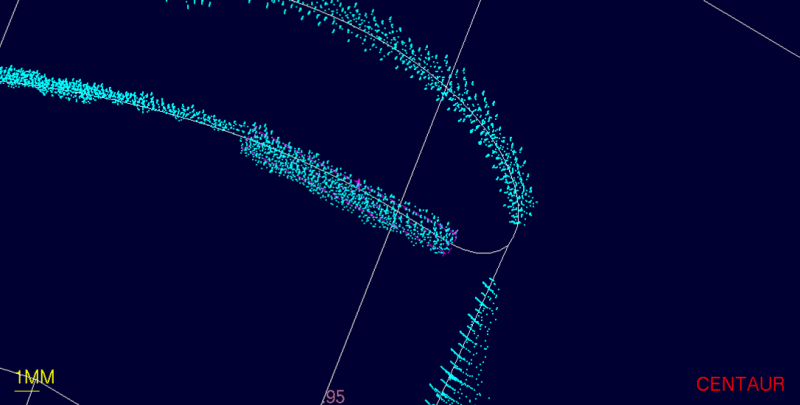

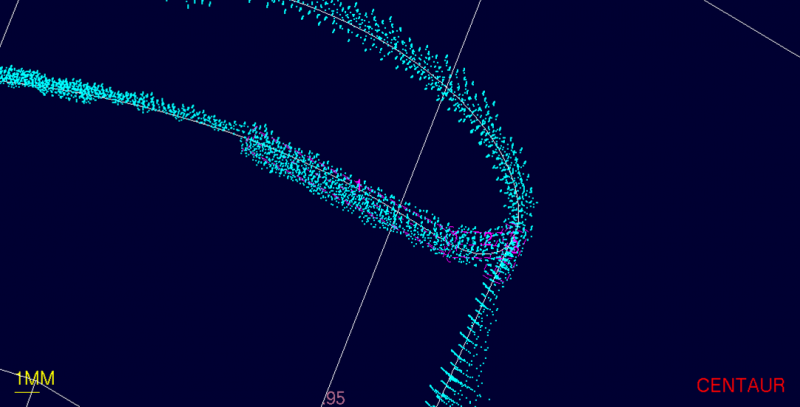

Leading Edge Surface Matching

This example shows refinement at the leading edge of a blade demonstrating that new points are placed onto the original surface. The white lines show the original mesh and the green lines show the refined mesh. Note the substantial motion in the lower portion of the leading edge.
