Sailboat

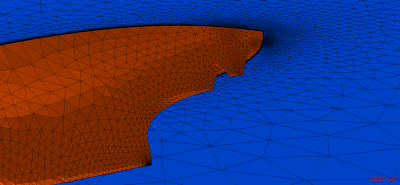

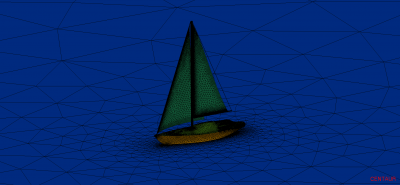

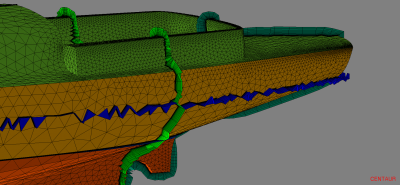

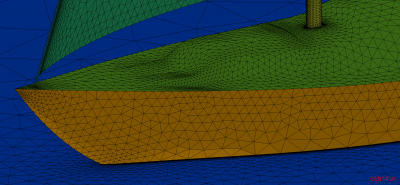

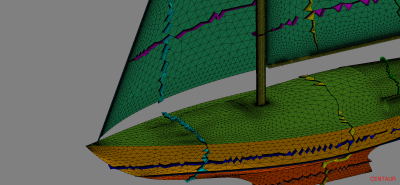

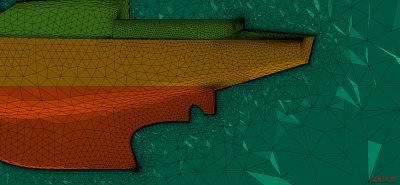

This sailboat geometry was meshed using CENTAUR with two zones, air and water, to prepare for a two-phase flow simulation. Each zone was meshed with a hybrid mesh containing both prismatic boundary layer elements and tetrahedra away from the surface. The water-air interface is a 1-to-1 interface with corresponding nodes, edges and faces on both sides.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
