Ship Hull with Screws and Rudders (including shaft-brackets)

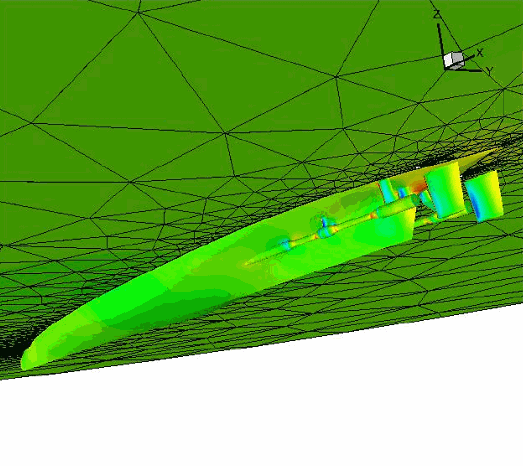

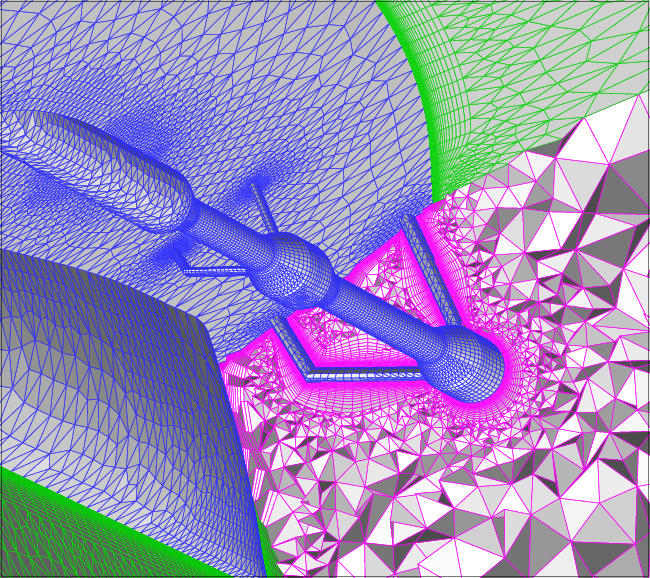

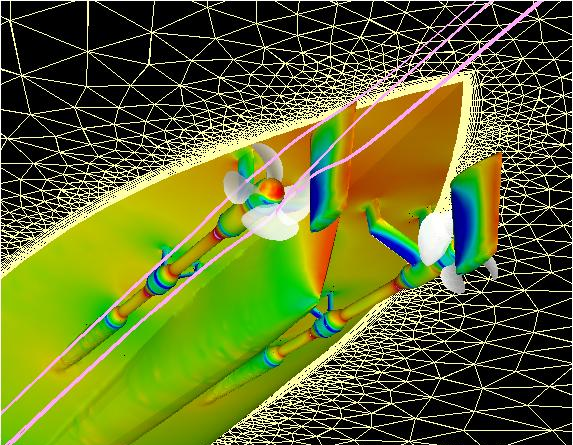

CENTAUR was used to create a hybrid mesh for this ship hull geometry including the screws. Prisms and hexahedra were used in the boundary layer region and tetrahedra were used away from the hull.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.

This geometry is courtesy of National Maritime Research Institute, Japan.
