Solution Interpolation

Mesh-to-mesh interpolation of solution data. The interpolator handles solutions obtained both on CENTAUR and foreign meshes.

The following example shows the streamwise velocity field (top) and the corresponding interpolated solution (bottom) for the case of incompressible flow around a rotating cylinder. The new mesh has additional clustering in the wake region.

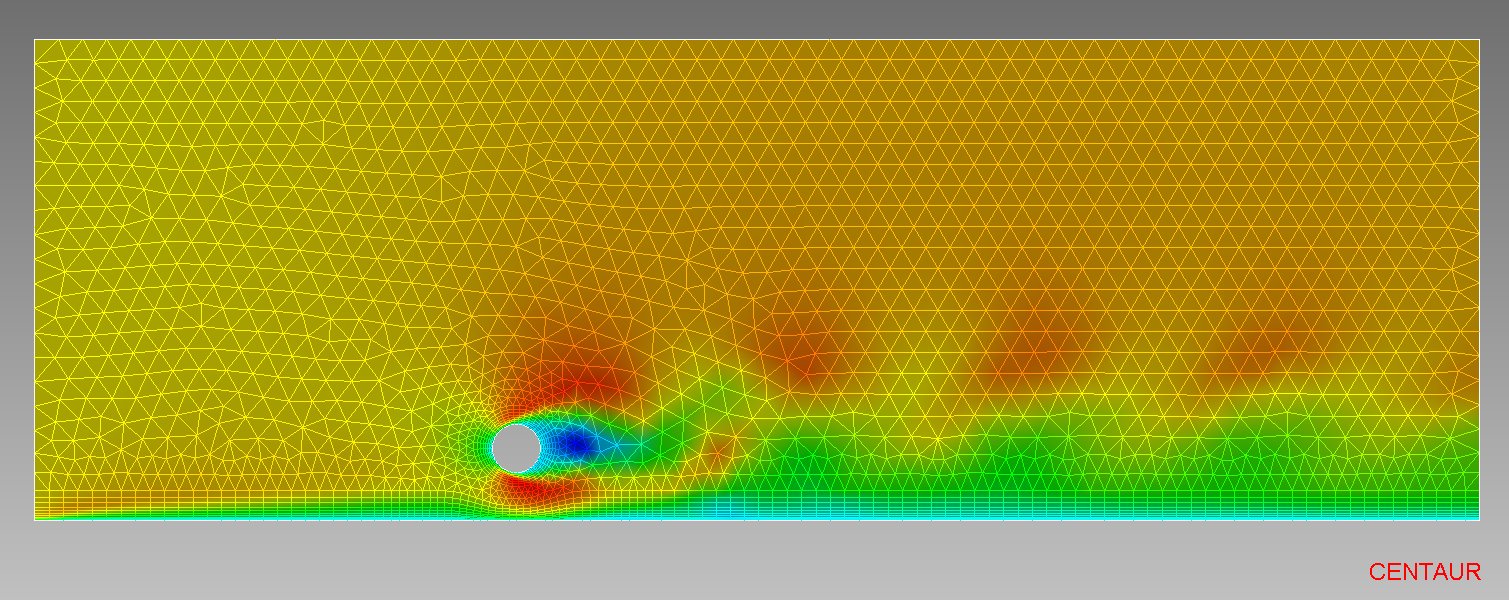

Streamwise velocity field obtained on coarse mesh.

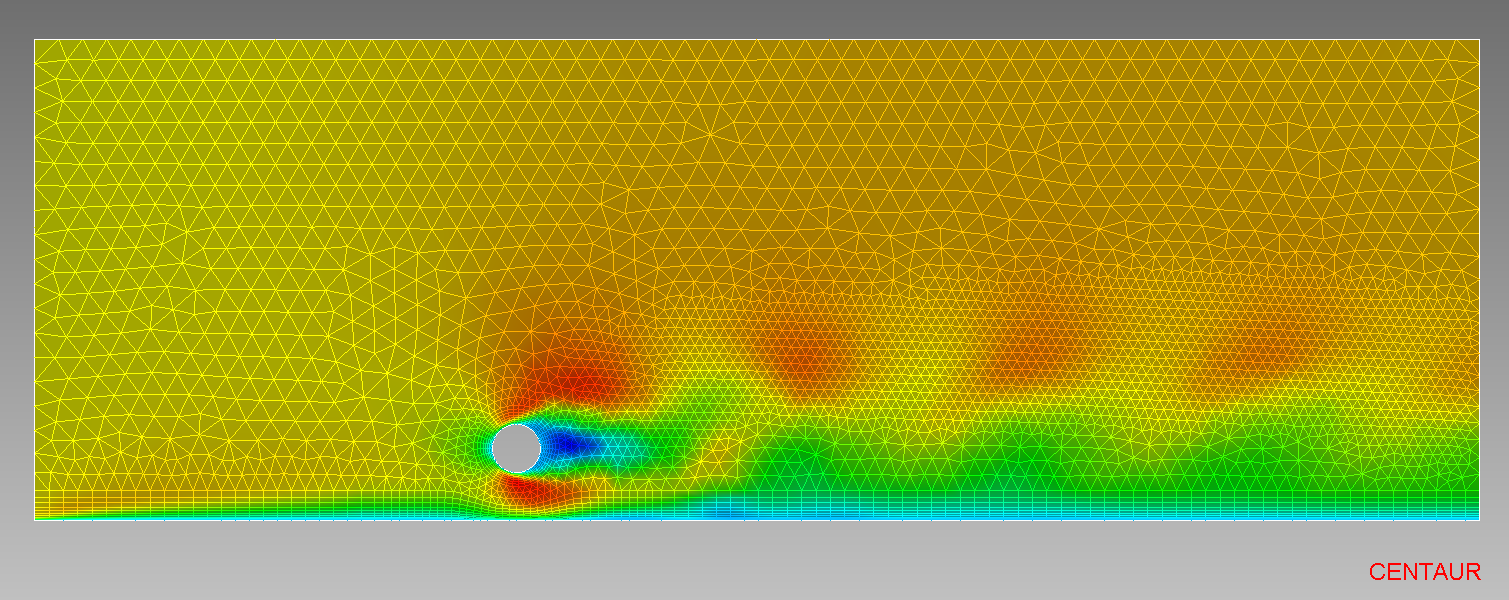

Interpolated streamwise velocity field on mesh with additional clustering in the wake region.
