Computational Grids
Complex Geometries and Fields
CAD Creation - Parametric Design


Sample Geometric and Field Complexities


The grid generator can handle local geometry and field complexities including:

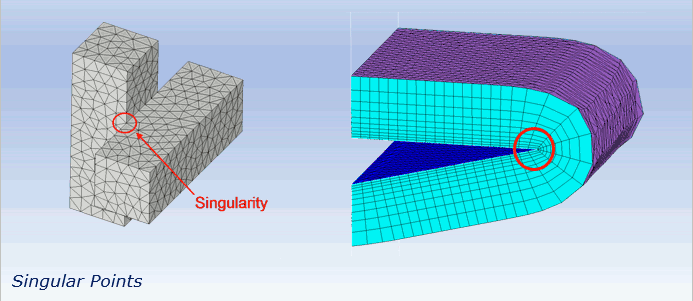

Singular points

Small scales

Small angles

Disparate length scales

Different scales orientation / directionality







"Mega" Geometries

"Mega" geometries pose additional requirements to the grid generator. Some common issues are the existence of thousands of panels and "dirty" CAD. Solutions to these issues include:

Automatic Setup

Automatic identification of similar parts (e.g. pipes)

Auto CAD Cleaning





"Mega" Meshes

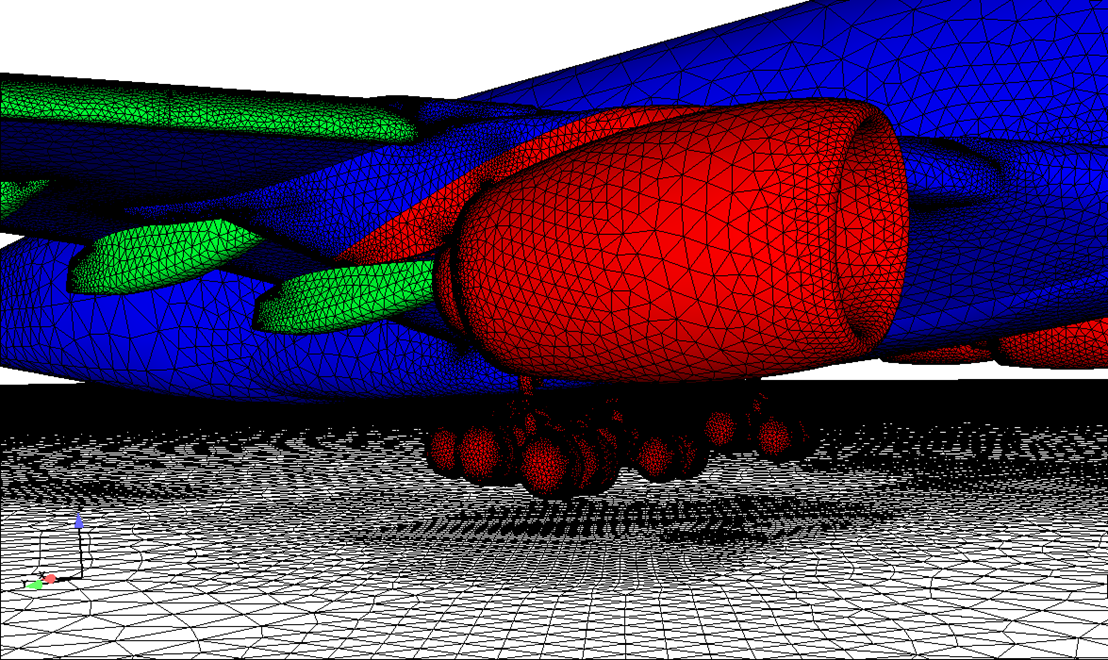

"Mega" meshes are required in applications such as LES, multi-stage turbomachinery, aircraft take-off and landing, etc.  Requirements that have to be met for the generation of "mega" meshes include:

Optimum meshes (minimum number of elements for given accuracy - hybrid mesh approach)

Parallel / Multi-core grid generation

Robustness of grid generation
