Computational Grids for Advanced Simulations

Wind Turbine

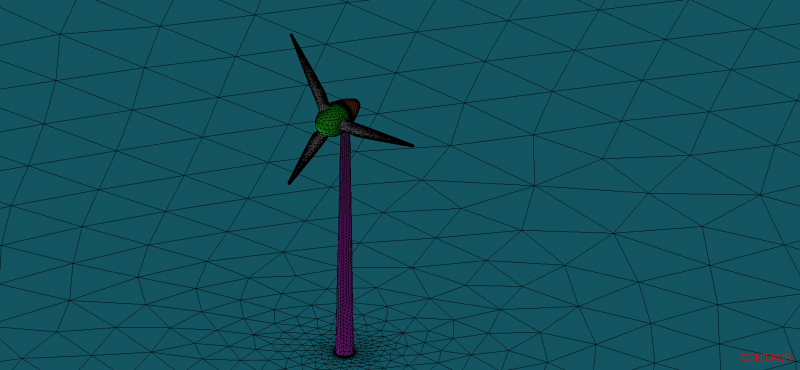

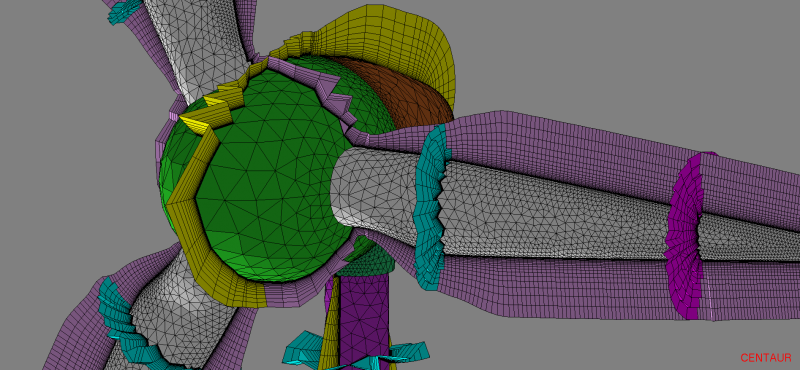

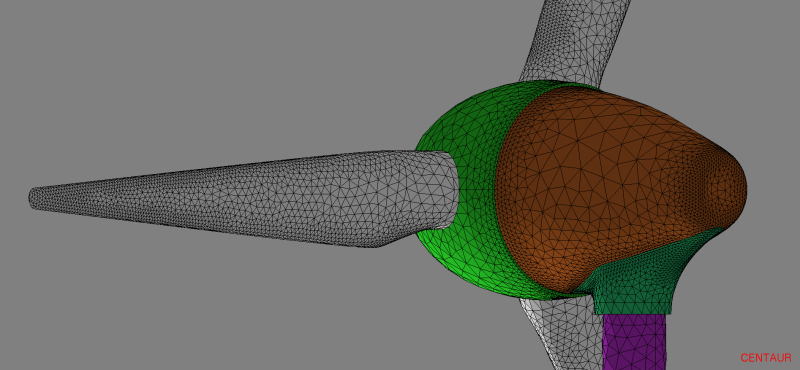

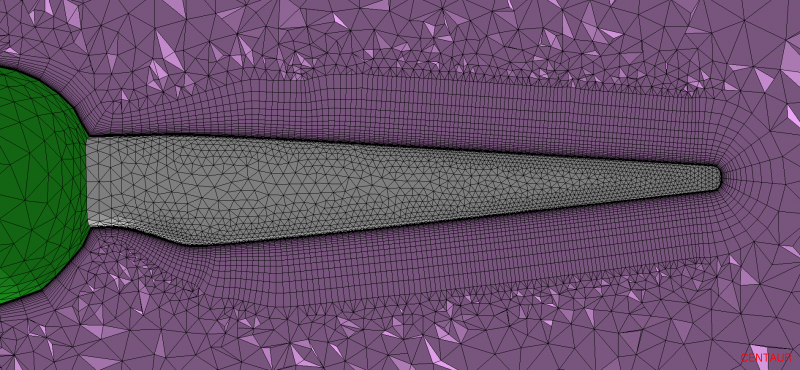

This geometry represents a three-bladed wind turbine and includes all the details of the blades, hub, nacelle and tower. A hybrid mesh was generated using CENTAUR which includes a prismatic boundary layer mesh and tetrahedra away from the surface.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
