X31 Aircraft

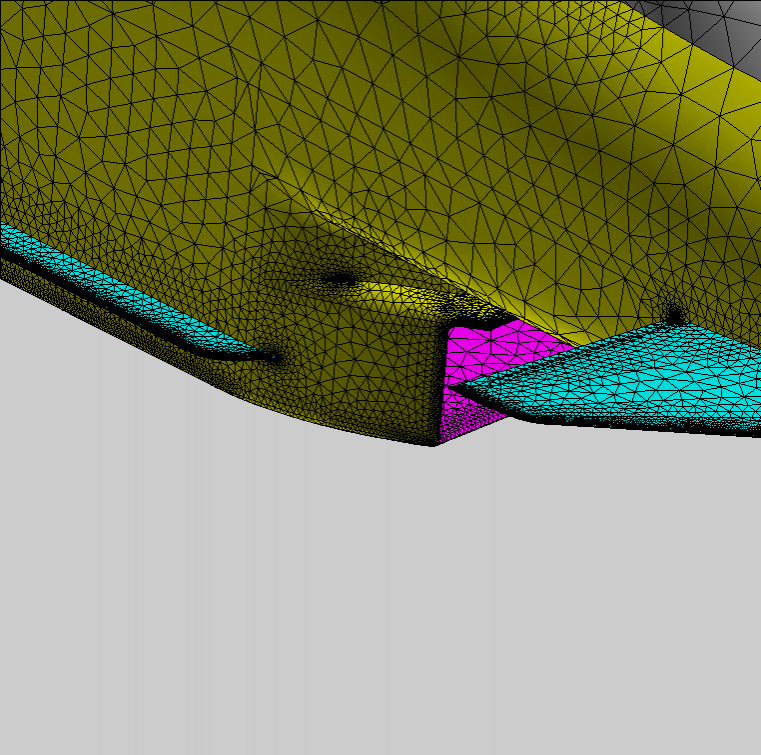

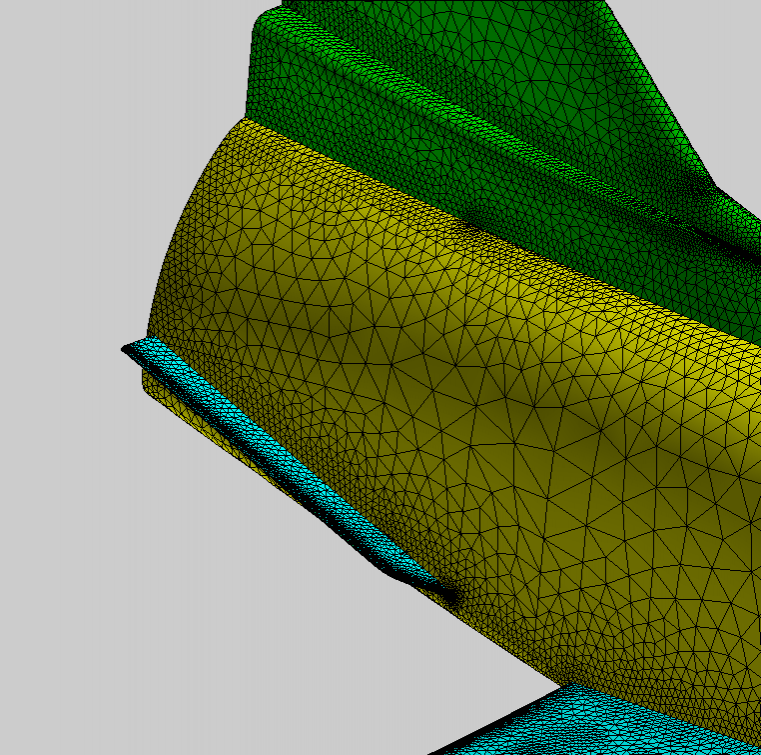

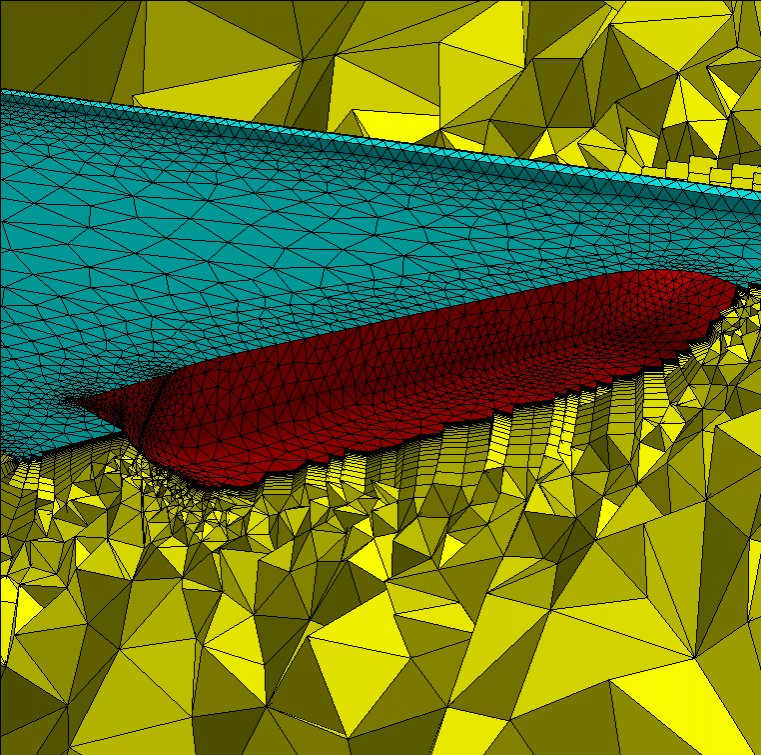

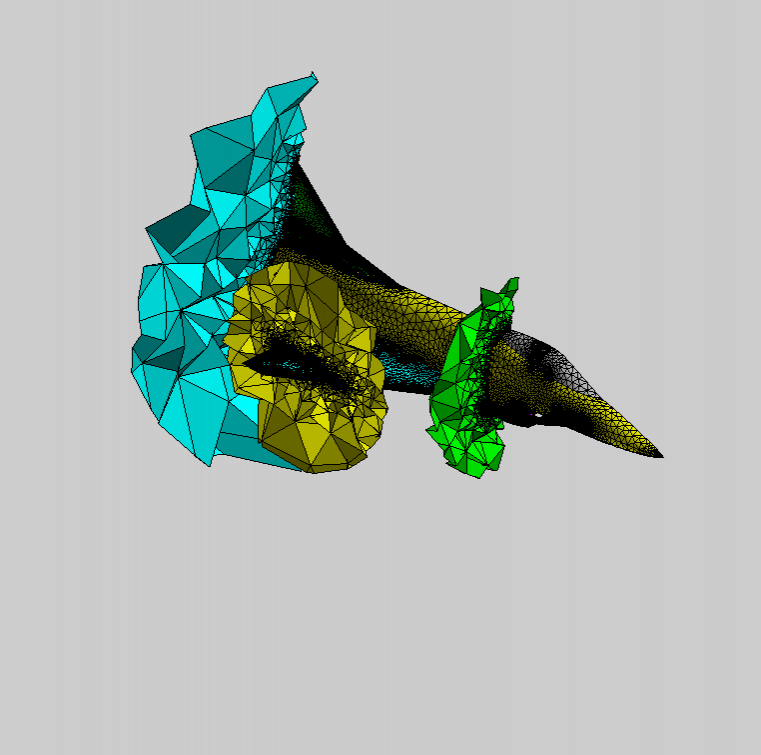

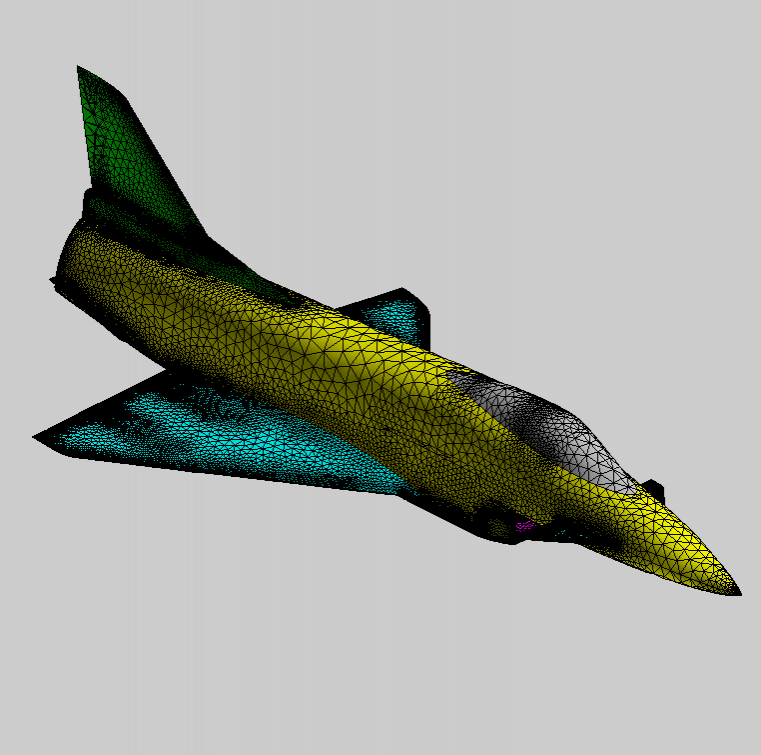

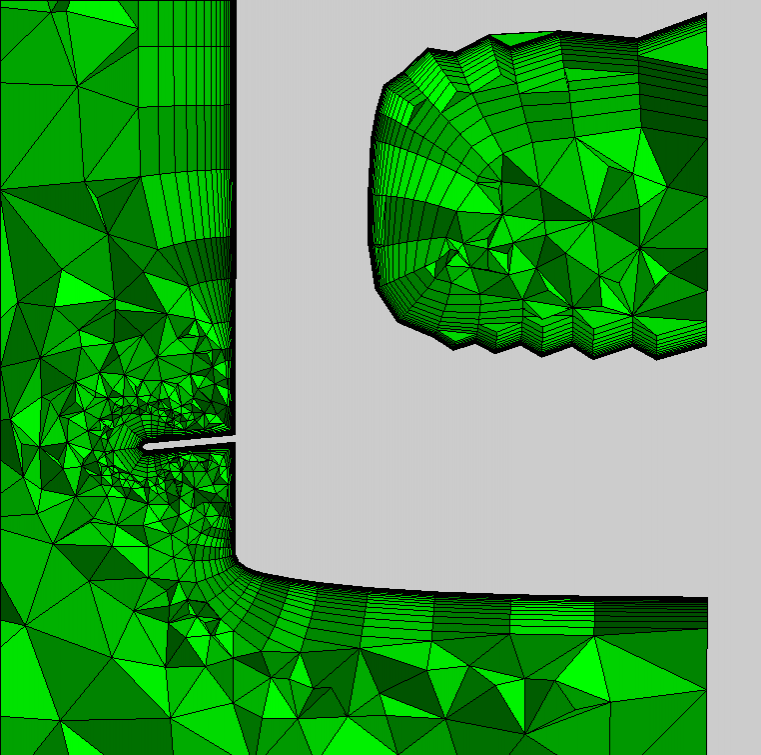

The X31 is an experimental aircraft developed to test ultra-high maneuverability via the use of thrust vectoring. The aircraft is a supersonic aircraft with canards instead of a horizontal tail to control the pitch of the aircraft. The geometry modeled includes the wings, fuselage, tail, canards, engine inlet and the engine outlet. A hybrid mesh was created using CENTAUR with prisms in the boundary layer and tetrahedra away from the aircraft.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
