X38 Crew Return Vehicle

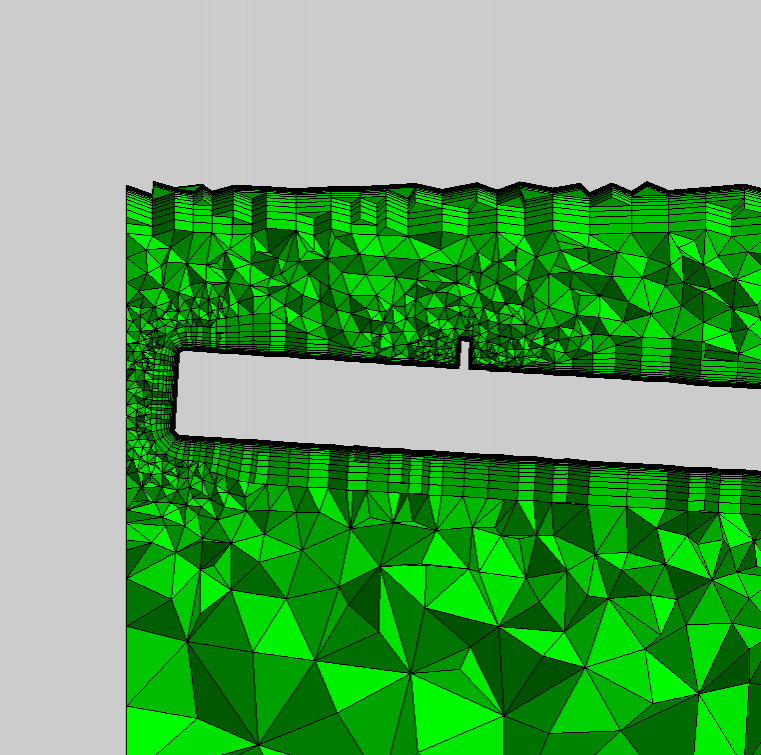

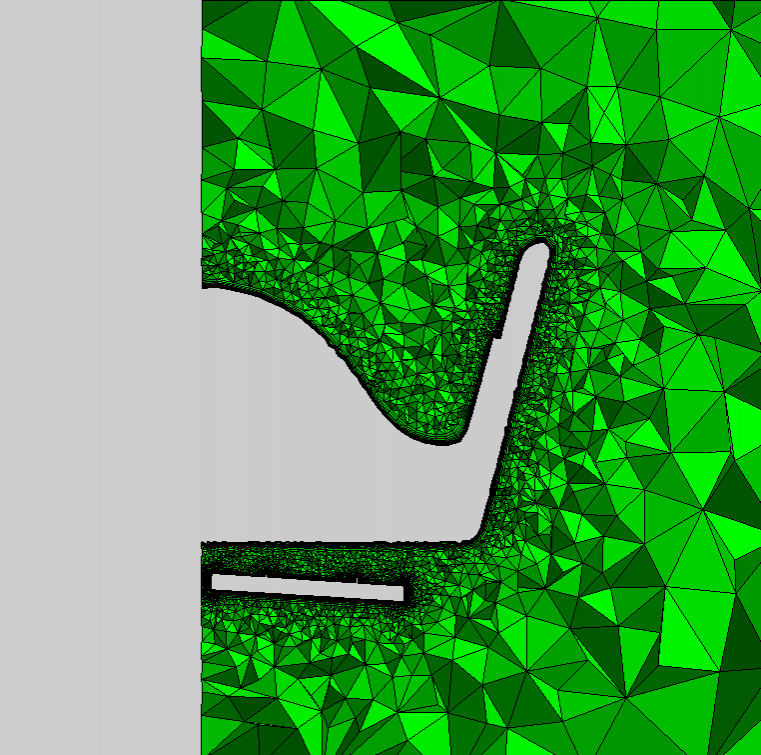

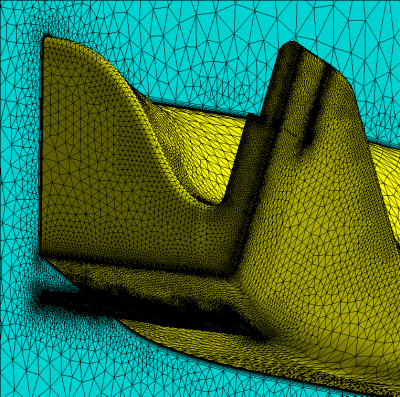

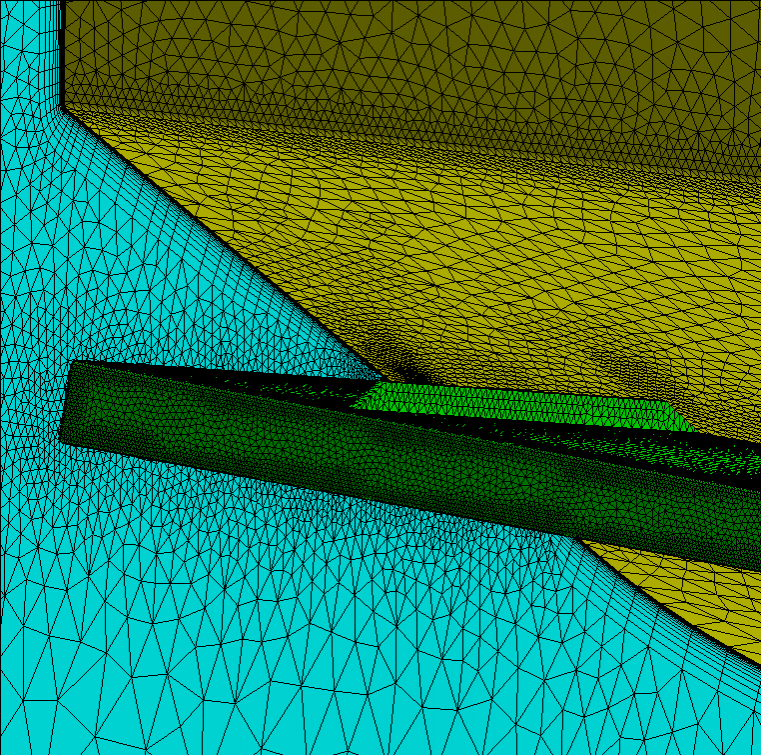

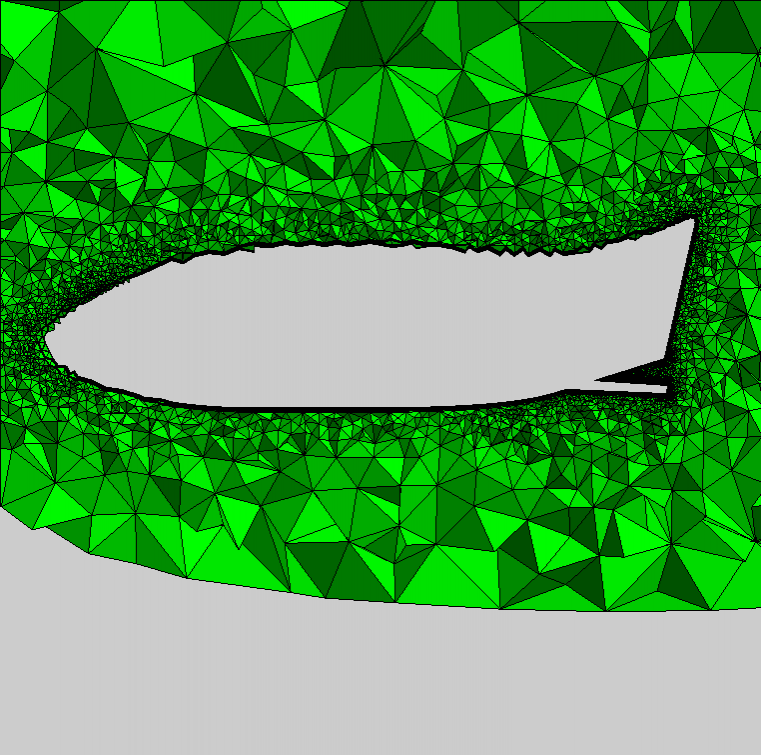

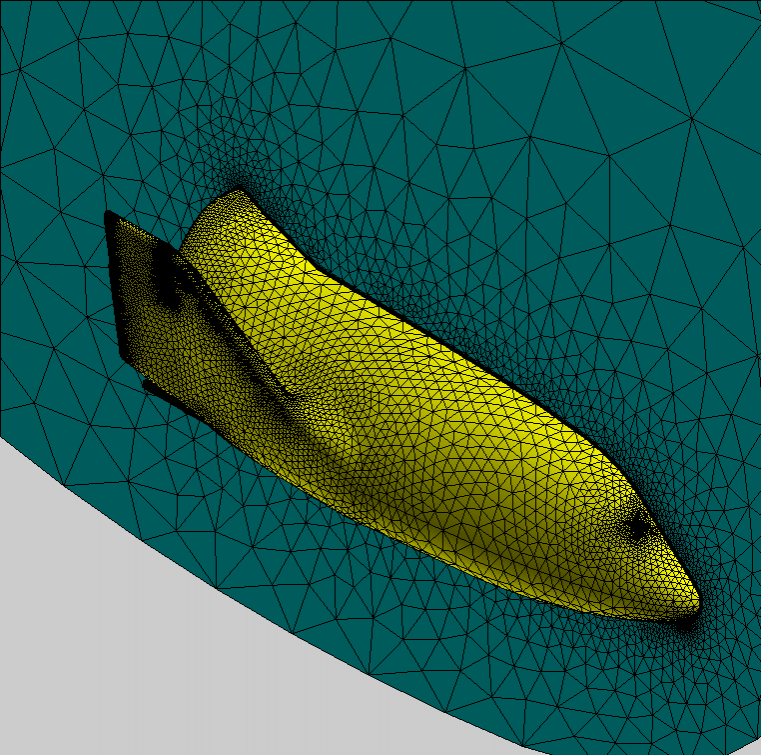

The X38 is an experimental aircraft developed by NASA to test a next generation crew return vehicle to replace the Soyuz capsule as the primary means of returning astronauts in the event of a catastrophe about the International Space Station. The geometry is a lifting body design that has no internal engines and lands with the assistance of a parafoil parachute. A hybrid mesh was created using CENTAUR with prisms in the boundary layer and tetrahedra away from the vehicle.

For more information on the technical features of CENTAUR, please see the Grid Generator section of our web site.
