High Order Meshes

CENTAUR can create Quadratic (curved edge) hybrid meshes for increased solution accuracy with reduced number of elements. The curved mesh edges conform to the geometry. These high order meshes can be exported into various formats including CGNS.

Examples

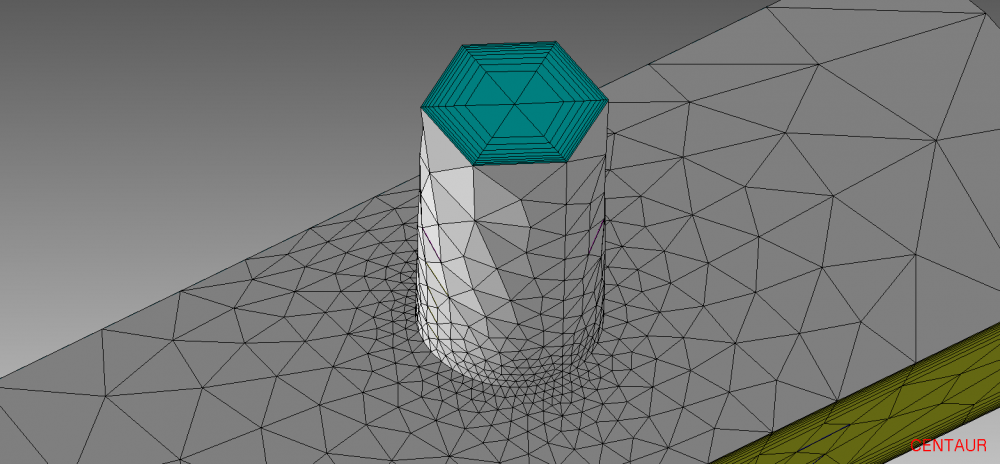

1st Order Hybrid Mesh

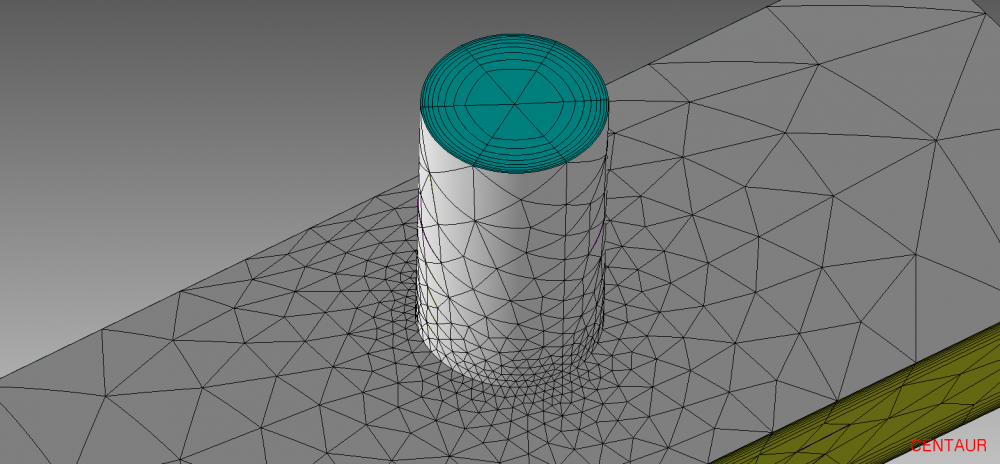

Quadratic Hybrid Mesh

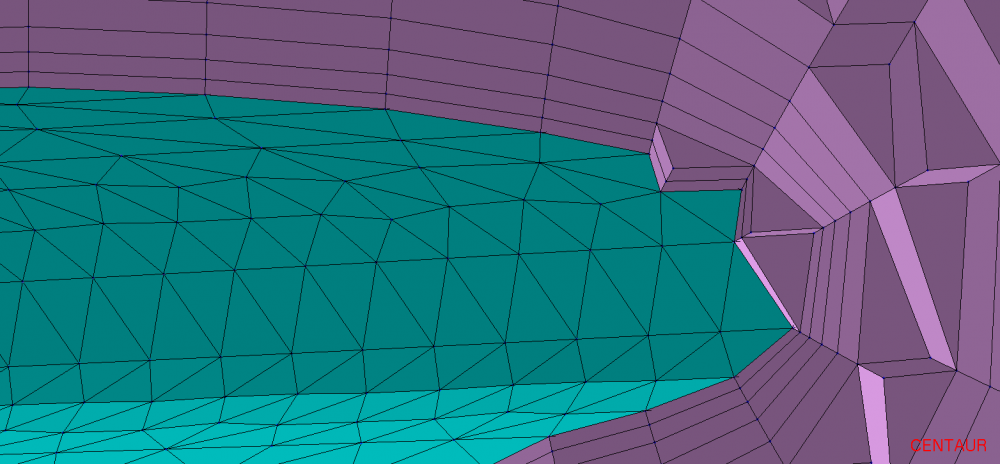

1st Order Leading Edge

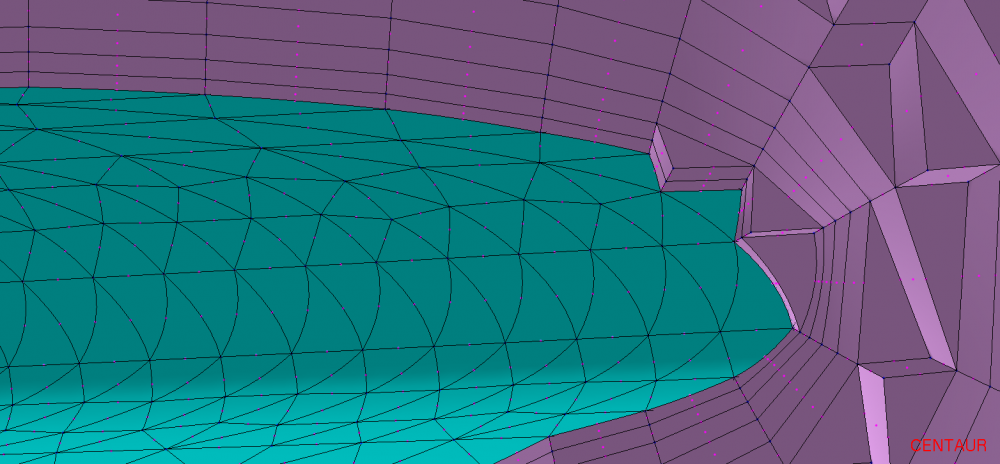

Quadratic Leading Edge

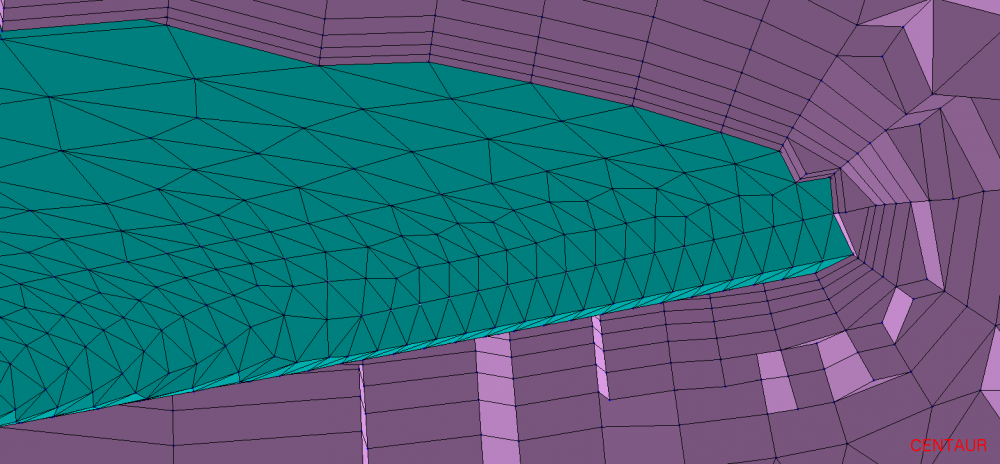

1st Order Prismatic Mesh

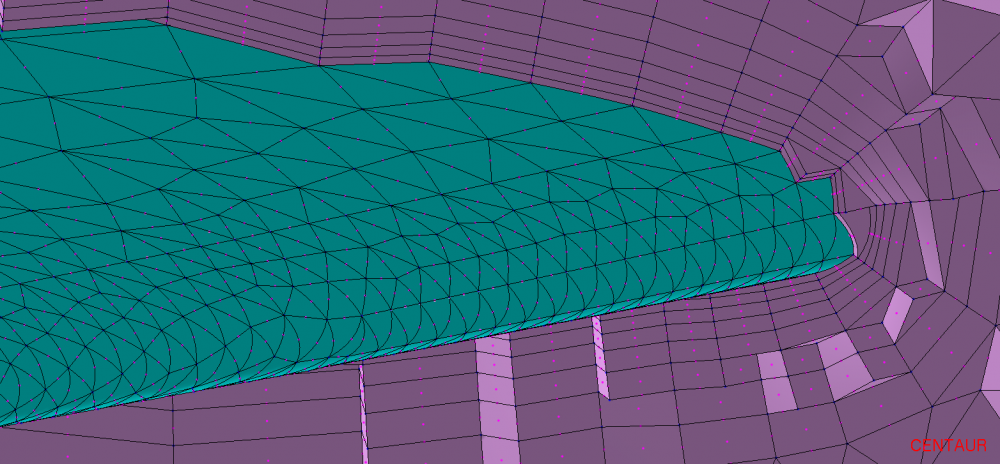

Quadratic Prismatic Mesh
